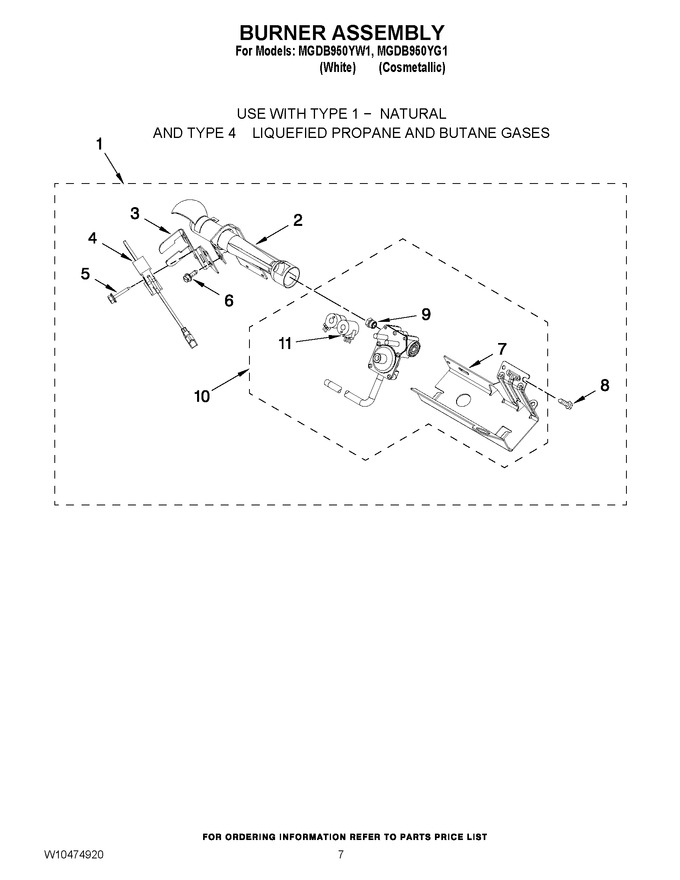

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8557891		Burner Assembly 60 Hz. (type 1) (copreci)   (Replaces: W10398742)				$ 373.98
2	WPW10536683		Tube, Burner   (Replaces: 8573010)				$ 178.07
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 7/8)   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
7	W10183823		Bracket, Burner		Appelez-nous	-
8	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.55
9	WP15418		Orifice, Burner (type 1)   (Replaces: 15418)				$ 37.32
9	WP229742		Orifice, Burner (type 4 (propane))   (Replaces: 229742)				$ 36.59
10	WP8573071		Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. No.7).   (Replaces: W10304606)				$ 416.96
11	WPW10368268		Coil, 60 Hz.   (Replaces: W10368268)				$ 186.57

    View Diagram in Separate Window       Print Part List
