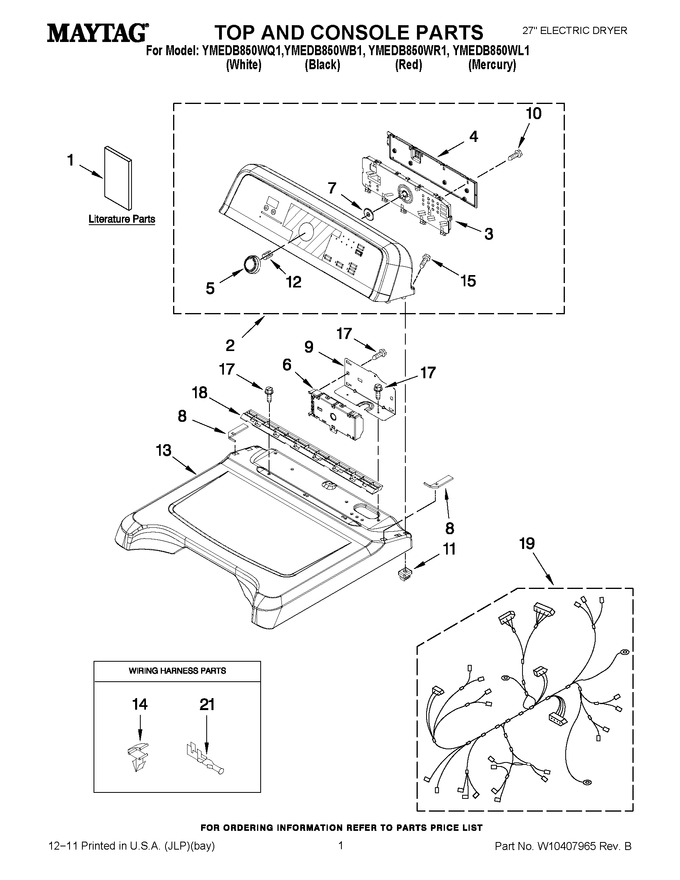

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10388777 | Installation, Instructions |
|
- | |||||
| 1 | W10260037 | Guide, Use & Care |
|
- | |||||
| 1 | W10156735 | Tech, Sheet |
|
- | |||||
| 2 | W10252471 | Panel, Console (black) |
|
$ 328.53 | |||||
| 2 | W10252468 | Panel, Console (white) |
|
$ 294.62 | |||||
| 2 | W10252469 | Panel, Console (mercury Silver) |
|
$ 440.84 | |||||
| 2 | W10252470 | Panel, Console (red) |
|
$ 458.09 | |||||
| 3 | W10336131 | User Interface |
|
$ 277.33 | |||||
| 4 | W10051124 | Cover, Rear (ui Assembly) |
|
$ 263.67 | |||||
| 5 | WPW10051126 | Knob Assembly (Replaces: W10051126) |
|
$ 53.77 | |||||
| 6 | W10111620 | Control Electronic |
|
$ 337.82 | |||||
| 7 | 8572039 | Seal, Ui |
|
- | |||||
| 8 | W10219695 | Foam Seal, Top (left-side) |
|
- | |||||
| 8 | W10219694 | Foam Seal, Top (right-side) |
|
- | |||||
| 9 | 8563853 | Bracket-machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 11 | W10112673 | Screw, Grommet |
|
$ 9.75 | |||||
| 12 | W10153920 | Spring, Knob |
|
- | |||||
| 13 | W10223157 | Top (white) |
|
$ 159.40 | |||||
| 13 | W10283289 | Top (mercury Silver) |
|
$ 201.24 | |||||
| 13 | W10283288 | Top (red) |
|
$ 71.86 | |||||
| 13 | W10223158 | Top (black) |
|
- | |||||
| 14 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 15 | W10131402 | Screw |
|
- | |||||
| 17 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 18 | W10110295 | Bracket, Console |
|
- | |||||
| 19 | W10319801 | Harness, Electric |
|
$ 150.28 | |||||
| 21 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 |
