01 - Cover Sheet

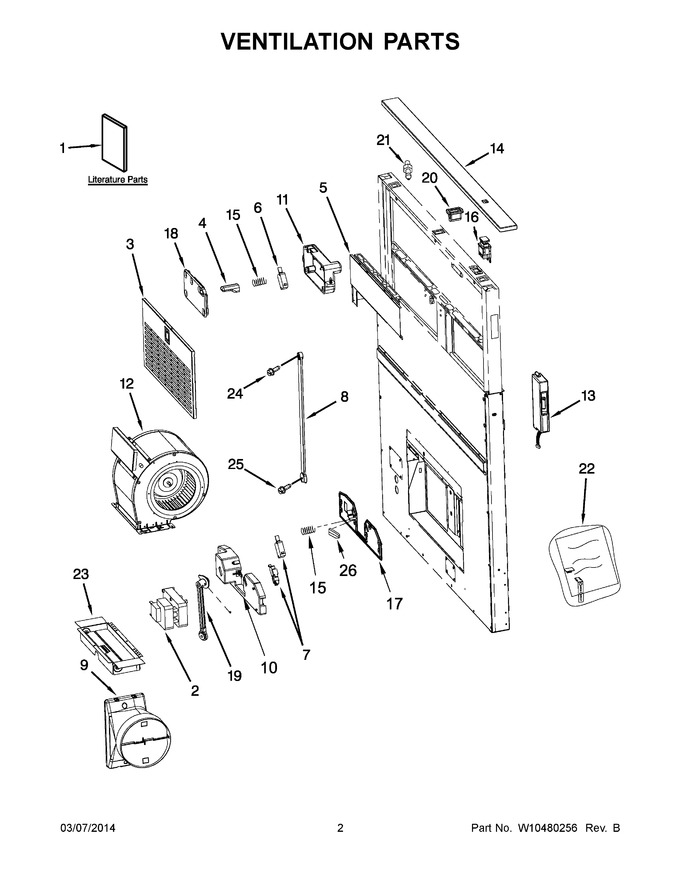

02 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10342490 | Use & Care Guide/ Install Instructs |
|
- | |||||
| 2 | WPW10398274 | Motor, Plenum (Replaces: W10398274) |
|
Immediately | $ 337.92 | ||||
| 3 | W10422879 | Filter, Grease (30`` Model) |
|
$ 259.08 | |||||
| 3 | W10422880 | Filter, Grease (36`` Model) |
|
$ 185.05 | |||||
| 4 | W10421258 | Button, Filters |
|
$ 17.50 | |||||
| 5 | W10421449 | Cover, Front (36`` Model) |
|
$ 197.56 | |||||
| 5 | W10421452 | Cover, Front (30`` Model) |
|
$ 197.39 | |||||
| 6 | W11666423 | Microswitch (Replaces: W10398343) |
|
Immediately | $ 89.06 | ||||
| 7 | WPW10398341 | Microswitch (Replaces: W10398341) |
|
Immediately | $ 79.50 | ||||
| 8 | WPW10421280 | Arm, Upper (Replaces: W10421280) |
|
$ 100.85 | |||||
| 9 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 199.49 | |||||
| 10 | W10833182 | Cover, Back Switch Holder Plenum Motor (Replaces: W10421254) |
|
Immediately | $ 174.83 | ||||
| 11 | W11666423 | Cover, Back Switch Holder Filters (Replaces: W10421257) |
|
Immediately | $ 89.06 | ||||
| 12 | W11672683 | Blower, Assembly (Replaces: W10398250) |
|
Immediately | $ 715.00 | ||||
| 13 | WPW10421481 | Control, Hood (Replaces: W10421481) |
|
Immediately | $ 459.02 | ||||
| 14 | W10422148 | Trim, Top (30`` Stainless) |
|
$ 251.43 | |||||
| 14 | W11561956 | Trim, Top (36`` Stainless) (Replaces: W10422150) |
|
$ 315.13 | |||||
| 15 | WPW10469579 | Spring, Button (Replaces: W10469579) |
|
Immediately | $ 20.23 | ||||
| 16 | W11230930 | Button, Control (Replaces: W10421483) |
|
Immediately | $ 106.40 | ||||
| 17 | W10833182 | Cover, Front Switch Holder Plenum Motor (Replaces: W10421255) |
|
Immediately | $ 174.83 | ||||
| 18 | W11666423 | Cover, Front Switch Holder Filters (Replaces: W10421256) |
|
Immediately | $ 89.06 | ||||
| 19 | WPW10421277 | Arm, Lower (Replaces: W10421277) |
|
Immediately | $ 84.63 | ||||
| 20 | WPW10421518 | Clip, Top Trim (Replaces: W10421518) |
|
$ 9.33 | |||||
| 21 | W10421517 | Clip, Top Trim |
|
$ 9.05 | |||||
| 22 | W11123695 | Hardware, Install (Replaces: W10422159) |
|
$ 122.22 | |||||
| 23 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 195.58 | |||||
| 24 | WPW10422765 | Screw Upper (Replaces: W10422765) |
|
$ 24.77 | |||||
| 25 | WPW10422764 | Screw Lower (Replaces: W10422764) |
|
Immediately | $ 26.92 | ||||
| 26 | WPW10681777 | Cam, Plenum Arm Lower (Replaces: W10681777) |
|
Immediately | $ 75.67 | ||||
| NI | W10387677 | Accessories, Trim, Top (36`` Black) |
|
$ 140.01 | |||||
| NI | W10387676 | Accessories, Trim, Top (30`` Black) |
|
$ 127.01 |
