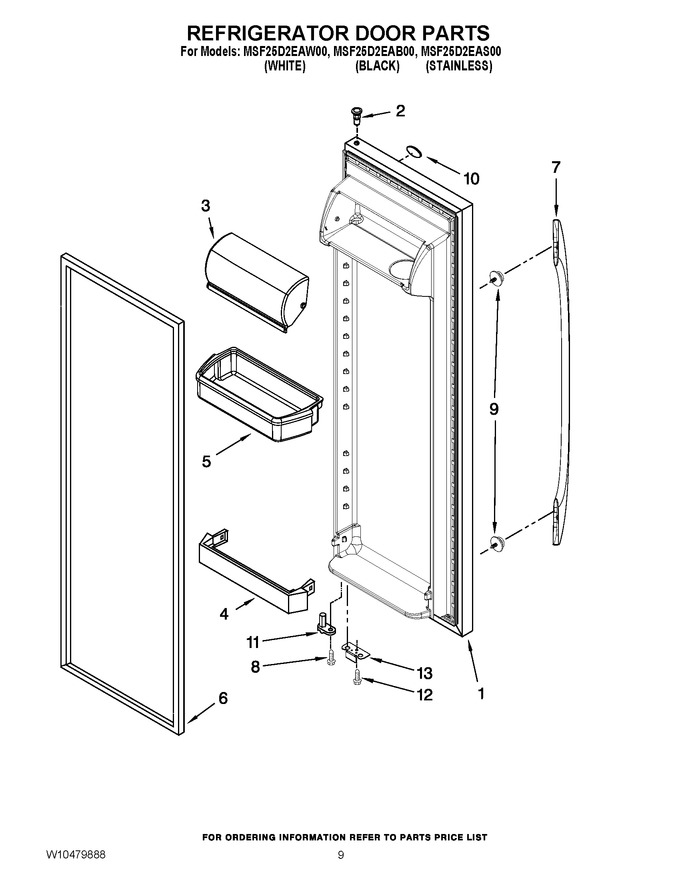

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10201110		Refrigerator Door (includes Item No.6) (black)		Appelez-nous	-
1	W10271935		Refrigerator Door (includes Item No.6) (stainless Steel)		Appelez-nous	-
1	W10158669		Refrigerator Door (includes Item No.6) (white)		Appelez-nous	-
2	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
5	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 333.00
7	WPW10170743		Handle (stainless)   (Replaces: W10170743)				$ 365.52
7	W10296255		Handle (black)		Appelez-nous	-
7	W10296254		Handle (white)		Appelez-nous	-
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WPW10288153		Stud, Handle   (Replaces: W10288153)			Immediately	$ 9.65
10	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
11	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10219812		Bracket, Door Stop (black)				$ 24.48
13	W10219811		Bracket, Door Stop (silver)				$ 25.43
