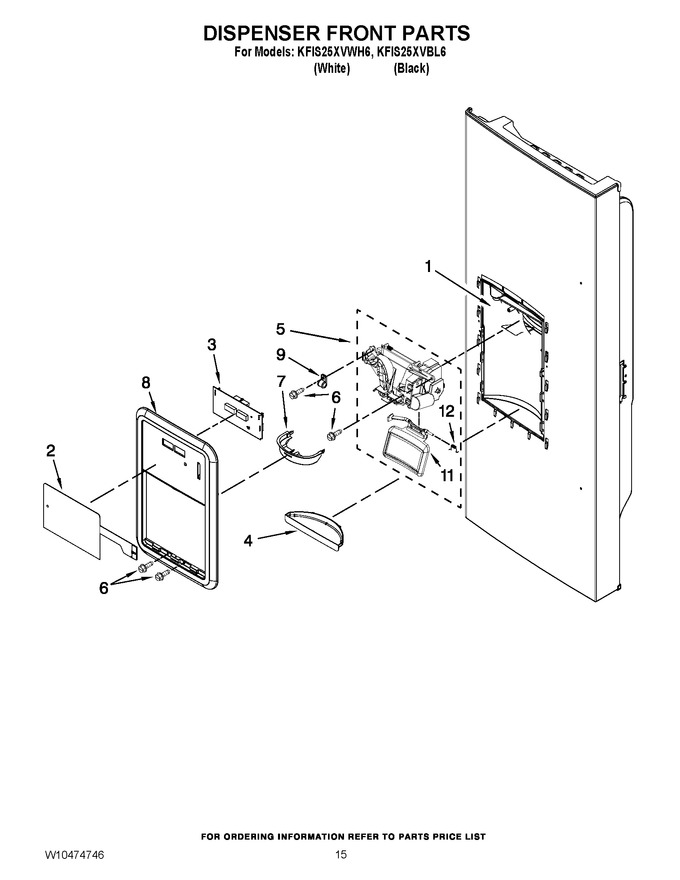

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10180050		Dispenser Keyboard		Appelez-nous	-
3	13053103SP		Board, L.v.				$ 328.26
4	W10445059		Sump, Dispenser (white)				$ 27.37
4	W10445058		Sump, Dispenser (black)		Appelez-nous	-
5	WP13005703B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005703B)				$ 324.63
5	WP13005703W		Chute, Ext/yoke (includes Switch) (white)   (Replaces: 13005703W)				$ 323.10
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
7	67006295		Ring, Target   (Replaces: 12958301)				$ 55.57
8	W10184486		Facade, Dispenser (black)				$ 33.41
8	W10183198		Facade, Dispenser (white)				$ 33.86
9	M0108106		Clamp, Tube				$ 69.95
11	W10170831		Yoke/pad Assy. (white)				$ 83.80
11	W10170832		Yoke/pad Assy. (black)				$ 85.18
12	WP12565502		Spring   (Replaces: 12565502)				$ 8.43
