SELECT A DIAGRAM

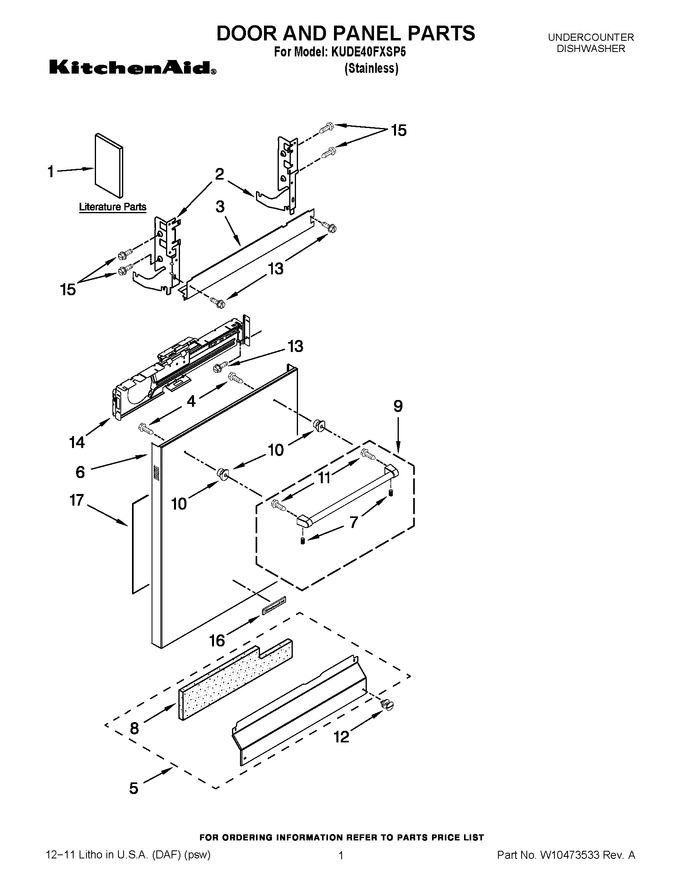

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10395349		Energy Guide		Appelez-nous	-
1	W10321874		Tech Sheet/english		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10321875		Tech Sheet/french		Appelez-nous	-
1	W10300929		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10300597		Guide, Use & Care (spanish)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	W10827631		Access Panel   (Replaces: W10369024)			Immediately	$ 195.64
6	WPW10195874		Panel, Full Front   (Replaces: W10195874)				$ 396.59
7	W10320946		Screw		Appelez-nous	-
8	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
9	W10195855		Handle Assembly		Appelez-nous	-
10	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
11	3400062		Screw		Appelez-nous	-
12	WPW10503548		Fastener   (Replaces: W10331789)			Immediately	$ 30.39
13	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
14	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 89.95
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	WPW10320959		Nameplate (zinc Cast)   (Replaces: W10320959)				$ 102.43
17	WPW10073520		Insulation, Front Panel   (Replaces: W10073520)				$ 96.23

    View Diagram in Separate Window       Print Part List
