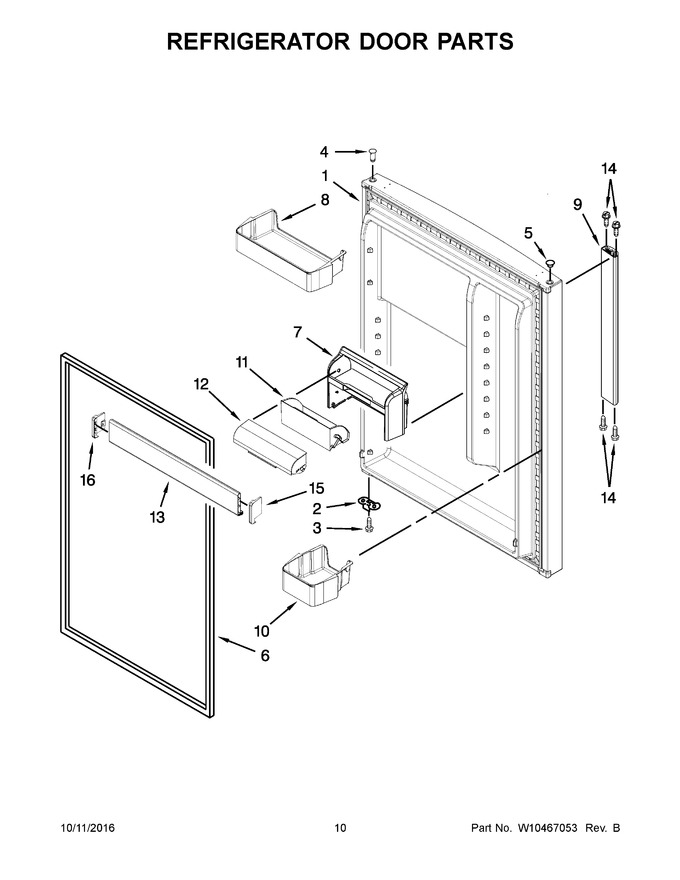

06 - Refrigerator Door Parts


07 - Unit Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10354683		Refrigerator Door (includes Items 4, 5, 6 & 9) (white)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
4	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
5	WP2212648		Hole Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
6	2159061		Door Gasket, Magnetic (beige)   (Replaces: 2202875)			Immediately	$ 183.67
7	W10308809		Housing, Compartment				$ 35.60
8	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 89.09
9	W10323486		Handle, Embedded				$ 45.50
10	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 72.18
11	W10356445		Bin, Tilt Out				$ 40.93
12	WPW10308843		Lid, Utility Flip   (Replaces: W10308843)				$ 78.98
13	WPW10469911		Trim, Door Shelf   (Replaces: W10469911)				$ 104.53
14	WP488163		Screw   (Replaces: 488208)				$ 7.92
15	W10308871		Cap, Trim End (right Hand)				$ 10.44
16	W10338485		Cap, Trim End (left Hand)				$ 10.41
1A	W10354703		Refrigerator Door (includes Items 4, 5, 6 & 9) (black)		Appelez-nous	-
1B	W10354707		Refrigerator Door (includes Items 4, 5, 6 & 9) (stainless)		Appelez-nous	-
5A	WP2212651		Hole Plug, Hinge (black)   (Replaces: 2212651)				$ 24.21
5B	WP2254517		Hole Plug, Hinge (grey)   (Replaces: 2254517)			Immediately	$ 24.34
6A	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 330.95
6B	W10249195		Door Gasket, Magnetic (grey)   (Replaces: W10171475)				$ 335.80
