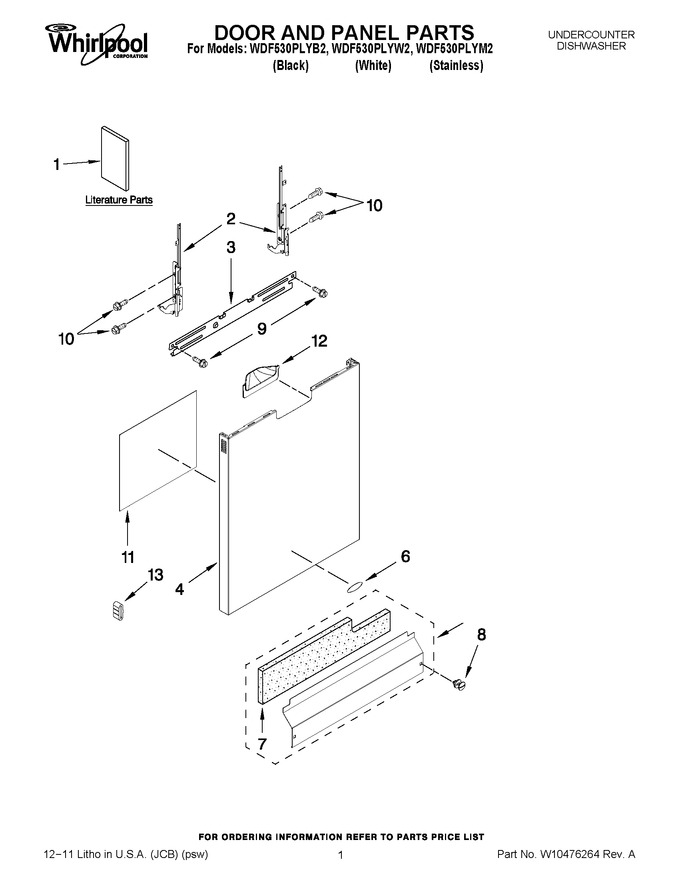

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350230 | Energy Guide |
|
- | |||||
| 1 | W10350333 | Tech Sheet (english) |
|
- | |||||
| 1 | W10350334 | Tech Sheet (french) |
|
- | |||||
| 1 | W10435040 | Installation, Instructions |
|
- | |||||
| 1 | W10350359 | Guide, Use & Care |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10274921) |
|
Immediately | $ 83.93 | ||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10274922) |
|
Immediately | $ 71.77 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10195120) |
|
Immediately | $ 32.88 | ||||
| 4 | W10350174 | Panel Front (includes 6 & 12) (stainless) |
|
$ 155.59 | |||||
| 4 | W10350171 | Panel Front (includes 6 & 12) (black) |
|
$ 134.99 | |||||
| 4 | W10350172 | Panel Front (includes 6 & 12) (white) |
|
$ 135.30 | |||||
| 5 | W10827632 | Access Panel (white) (Replaces: W10369025) |
|
Immediately | $ 163.70 | ||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369023) |
|
Immediately | $ 195.64 | ||||
| 6 | WPW10393264 | Nameplate (Replaces: W10393264) |
|
$ 67.74 | |||||
| 7 | W10831329 | Insulation, Access Panel (Replaces: W10300769) |
|
Immediately | $ 43.30 | ||||
| 8 | WPW10503548 | Screw (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 8 | WPW10503549 | Screw (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 11 | W11126003 | Insulation, Door (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 12 | W10343321 | Pocket Assy (white) |
|
$ 144.59 | |||||
| 12 | W10343324 | Pocket Assy (black) |
|
$ 78.37 | |||||
| 12 | W10369758 | Pocket Assy (stainless) |
|
- | |||||
| 13 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 |
