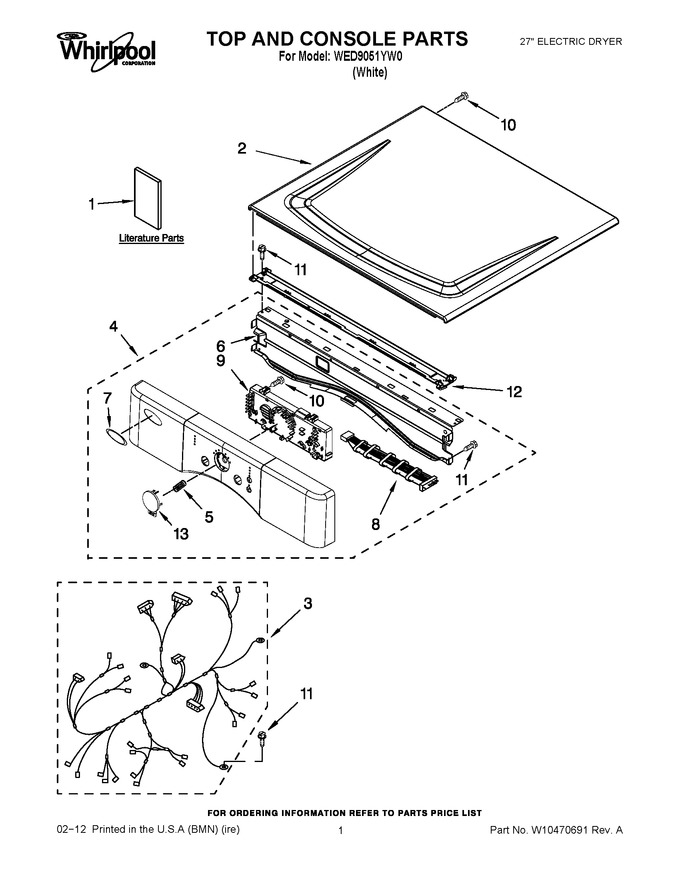

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296184		Use & Care Guide		Appelez-nous	-
1	W10443109		Tech Sheet		Appelez-nous	-
1	W10443041		Installation, Instruction		Appelez-nous	-
2	WPW10336080		Top   (Replaces: W10336080)				$ 331.99
3	W10251442		Harness, Main		Appelez-nous	-
4	WPW10444970		Panel, Console   (Replaces: W10444970)				$ 359.12
5	W10215807		Spring, Cycle Button				$ 22.02
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
7	W10117943		Badge Assembly		Appelez-nous	-
8	W10259049		Cable, User Interface				$ 170.48
9	WPW10444971		Assembly, User Interface   (Replaces: W10444971)				$ 315.57
10	W10006580		Screw, M3-1.12 X 12		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	WPW10266747		Chanel, Water   (Replaces: W10266747)				$ 73.96
13	W10212800		Button, Cycle				$ 81.62
