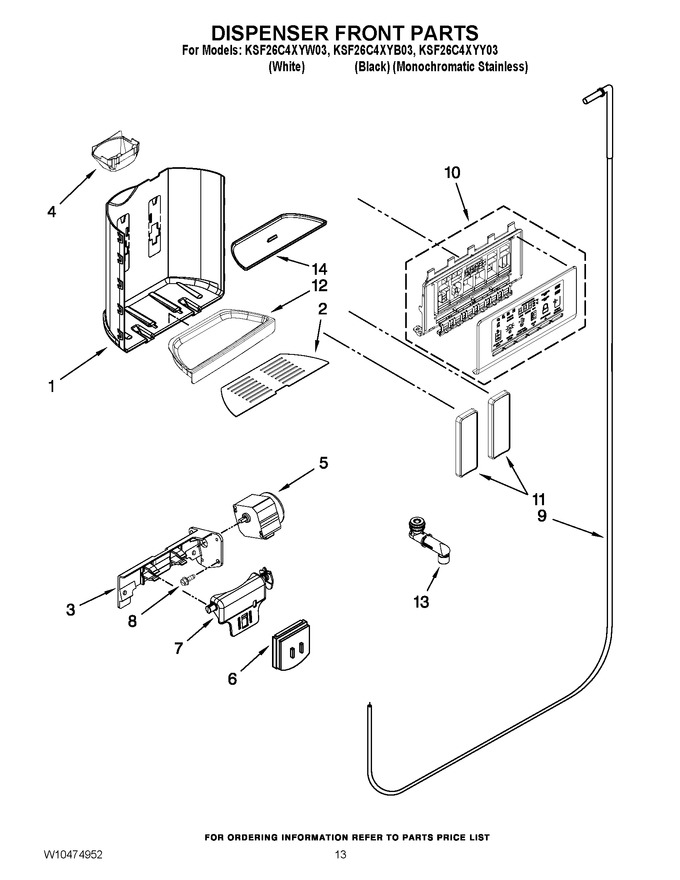

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10317270		Grate, Drip Tray   (Replaces: W10317270)				$ 75.65
3	W11130210		Bracket, Ice Door   (Replaces: W10317235)				$ 160.56
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W11130210		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10355494)				$ 160.56
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	WPW10386778		Water Tube   (Replaces: W10277960)			Immediately	$ 132.74
10	W10418408		Electronic Control Assy (black)		Appelez-nous	-
10	W10844896		Electronic Control Assy (silver/mirror)   (Replaces: W10418407)				$ 509.96
11	W10317250		Pad, Ice & Water (white)				$ 321.84
11	WPW10346924		Pad, Ice & Water (tempest Grey)   (Replaces: W10346924)			Immediately	$ 289.65
11	W11561037		Pad, Ice & Water (black)   (Replaces: W10317253)				$ 82.93
12	W10317265		Tray, Housing (black)				$ 62.19
12	WPW10317261		Tray, Housing (grey)   (Replaces: W10317261)				$ 83.76
12	W10317264		Tray, Housing (white)				$ 62.66
13	WP2305235		Spigot   (Replaces: W10317267)				$ 147.07
14	W10859920		Drip Tray, Insert (apollo Grey)   (Replaces: W10317276)				$ 67.52
14	W10317274		Drip Tray, Insert (white)				$ 85.12
14	W10317275		Drip Tray, Insert (black)		Appelez-nous	-
