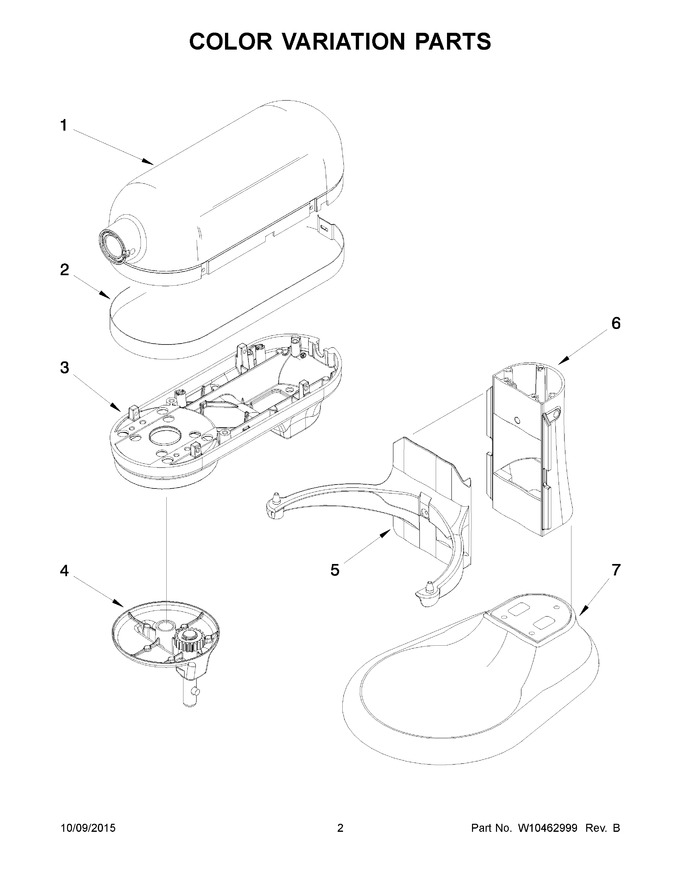

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 2 | W10668069 | Trim Band (dark Platinum) (Replaces: W10419449) |
|
- | |||||
| 3 | W10410015 | Lower Gearcase (onyx Black) (Replaces: W10410012) |
|
$ 63.99 | |||||
| 4 | WPW10410018 | Planetary (onyx Black) (Replaces: W10419443) |
|
$ 65.60 | |||||
| 5 | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 6 | WPW10450990 | Column And Pins (onyx Black) (Replaces: W10450990) |
|
$ 98.88 | |||||
| 7 | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 1A | WPW10403016 | Motor Housing (candy Apple) (Replaces: W10403016) |
|
$ 65.02 | |||||
| 1B | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1C | WPW10354887 | Motor Housing (medallion Silver) (Replaces: W10354887) |
|
$ 65.39 | |||||
| 1D | W10454050 | Motor Housing (frosted Pearl) |
|
- | |||||
| 1E | W11681929 | Motor Housing (almond Cr?me) (Replaces: 9705298) |
|
- | |||||
| 3A | W10403006 | Lower Gearcase (candy Apple) (Replaces: W10403004) |
|
$ 65.91 | |||||
| 3B | W10410014 | Lower Gearcase (empire Red) (Replaces: W10410011) |
|
$ 66.24 | |||||
| 3C | W10354882 | Lower Gearcase (medallion Silver) (Replaces: W10354881) |
|
$ 68.17 | |||||
| 3D | W10454060 | Lower Gearcase (frosted Pearl) (Replaces: W10454059) |
|
- | |||||
| 3E | W10668599 | Lower Gearcase (almond Creme) (Replaces: W10668598) |
|
- | |||||
| 4A | WPW10403008 | Planetary (candy Apple) (Replaces: W10419440) |
|
$ 64.97 | |||||
| 4B | WPW10419426 | Planetary (empire Red) (Replaces: W10419442) |
|
$ 66.18 | |||||
| 4C | WPW10354883 | Planetary (medallion Silver) (Replaces: W10452362) |
|
$ 65.28 | |||||
| 4D | W10452343 | Planetary (frosted Pearl) |
|
- | |||||
| 4E | W10880133 | Planetary (almond Creme) (Replaces: W10668601) |
|
- | |||||
| 5A | WPW10402998 | Bowl Support And Pins (candy Apple) (Replaces: W10402998) |
|
$ 98.26 | |||||
| 5B | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5C | WPW10354878 | Bowl Support And Pins (medallion Silver) (Replaces: W10354878) |
|
$ 104.19 | |||||
| 5D | W10448659 | Bowl Support And Pins (frosted Pearl) |
|
- | |||||
| 5E | 9705358 | Bowl Support And Pins (almond Creme) |
|
- | |||||
| 6A | WPW10450997 | Column And Pins (candy Apple) (Replaces: W10450997) |
|
$ 103.25 | |||||
| 6B | WPW10451578 | Column And Pins (empire Red) (Replaces: W10451578) |
|
$ 98.88 | |||||
| 6C | WPW10451118 | Column And Pins (medallion Silver) (Replaces: W10451118) |
|
$ 103.25 | |||||
| 6D | WPW10444018 | Column And Pins (frosted Pearl) (Replaces: W10444018) |
|
$ 105.84 | |||||
| 6E | W10668596 | Column And Pins (almond Creme) |
|
- | |||||
| 7A | WPW10402986 | Base & Foot Assembly (candy Apple) (Replaces: W10402986) |
|
$ 111.33 | |||||
| 7B | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7C | WPW10354860 | Base & Foot Assembly (medallion Silver) (Replaces: W10354860) |
|
$ 105.77 | |||||
| 7D | W10448638 | Base & Foot Assembly (frosted Pearl) |
|
- | |||||
| 7E | W11672227 | Base & Foot Assembly (almond Creme) (Replaces: 9705346) |
|
- |
