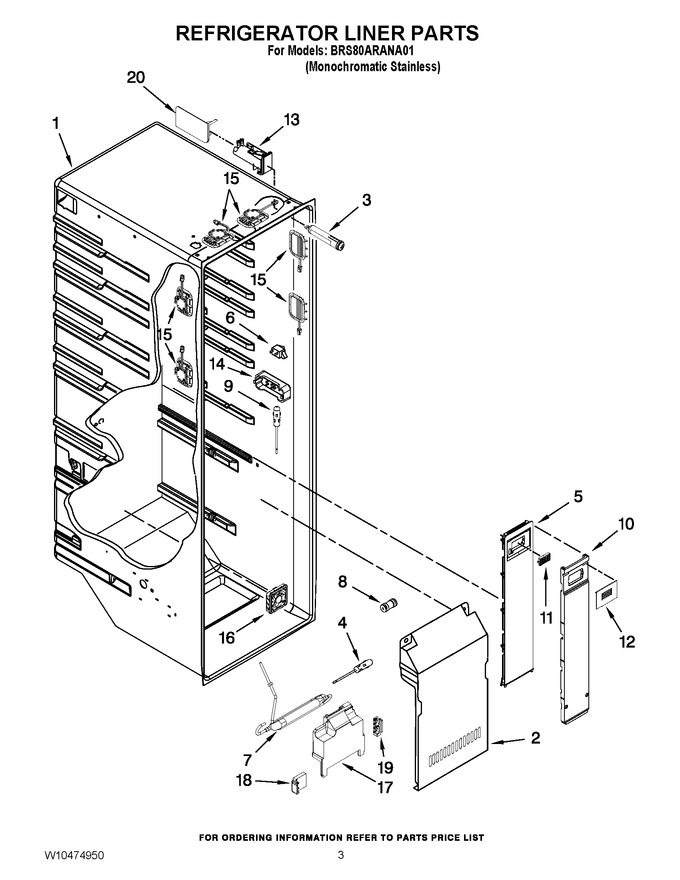

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10859809		Cover, Evap   (Replaces: W10251454)				$ 263.42
3	W10391480		Water Filter		Appelez-nous	-
4	W10316760		Thermistor, Evap Fan   (Replaces: W10323459)			Immediately	$ 72.91
5	W10316751		Cover, Air Tower		Appelez-nous	-
6	W11384469		Switch Rocker Arm   (Replaces: C3680314)			Immediately	$ 39.09
7	W11204869		Reservoir   (Replaces: W10279843)				$ 167.67
8	WP2300868		Connector   (Replaces: W10271541)			Immediately	$ 29.05
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
10	W10316746		Tower, Air		Appelez-nous	-
11	W10349302		Air Filter		Appelez-nous	-
12	W10321024		Air Filter Cover		Appelez-nous	-
13	WPW10329943		Housing, Water Filter   (Replaces: W10329943)				$ 78.49
14	WPW10425252		Cover, Thermistor   (Replaces: W10356630)			Immediately	$ 88.38
15	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 271.97
16	W10451901		Fan Assy, Evap   (Replaces: W10360454)				$ 270.14
17	W10360465		Evap Insulation, W/fan Assy		Appelez-nous	-
18	W11028224		Support, Evap Lh   (Replaces: W10223366)				$ 11.98
19	W10837626		Support, Evap Rh   (Replaces: W10223364)				$ 75.86
20	W10300484		Cover, Water Filter				$ 129.99
