SELECT A DIAGRAM

01 - Top And Console Parts

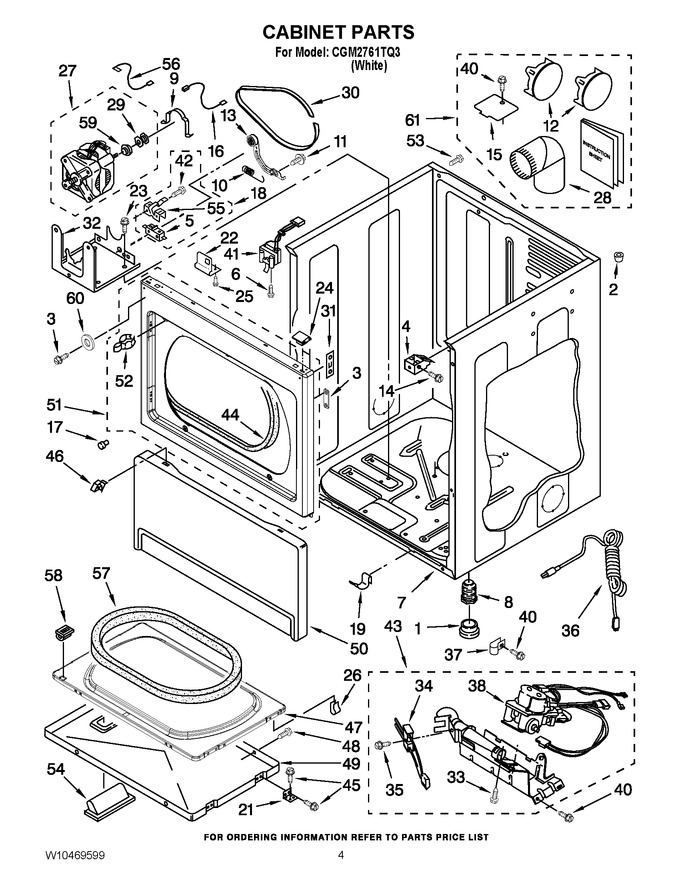

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
2	356674		Cone-wedge				$ 33.19
3	W10191265		Plug, Hinge Screw				$ 44.28
4	3391846		Clip, Front Panel				$ 21.15
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
7	W11417441		Cabinet   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	WPW10344193		Idler Assembly   (Replaces: W10344193)			Immediately	$ 83.77
14	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 13.88
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
16	W10167612		Wire, Belt Switch				$ 12.78
17	693152		Bumper				$ 10.96
18	279782		Switch, Assembly   (Replaces: 8066134)			Immediately	$ 54.44
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
21	WPW10279703		Hinge And Pin   (Replaces: W10279703)				$ 72.22
22	3353948		Bracket, Lock				$ 12.34
23	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
24	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 7.70
25	63554		Rivet		Appelez-nous	-
26	3389249		Nut, ``u``		Appelez-nous	-
27	W10841144		Motor Assembly 60 Hz.   (Replaces: 8538264)			Immediately	$ 234.31
28	279731		4`` - 90 Elbow		Appelez-nous	-
29	WP8066184		Pulley 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.19
34	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
35	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3393909)				$ 7.50
36	W11222083		Cord, Power   (Replaces: W10440461)				$ 120.59
37	3387561		Clamp, Pipe		Appelez-nous	-
38	279923		Valve, Gas (complete) 60 Hz.   (Replaces: W10304604)			Immediately	$ 286.03
40	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 7.56
43	W10466240		Burner Assembly 60 Hz. (refer To Pages 8 & 9 For Further Breakdown)		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door-rear   (Replaces: W10323061)				$ 287.02
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
49	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
50	WP3406797		Panel, Toe (includes Illus. 17)   (Replaces: 697215)				$ 238.33
51	W10242810		Lower Front Panel   (Replaces: W10192882)				$ 361.07
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W10850756		Screw, Ground 10-16 X 1/2   (Replaces: 8533974)				$ 7.76
54	3389522		Handle, Door				$ 77.90
55	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 33.11
56	3398948		Wire, Jumper				$ 61.58
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	WP3393657		Restrain, Belt   (Replaces: 3393657)			Immediately	$ 132.46
60	W11089212		Washer   (Replaces: 3392186)				$ 9.67
61	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot-optional (extended Length) (package Of 2) (not Included.)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
