New Model Search:

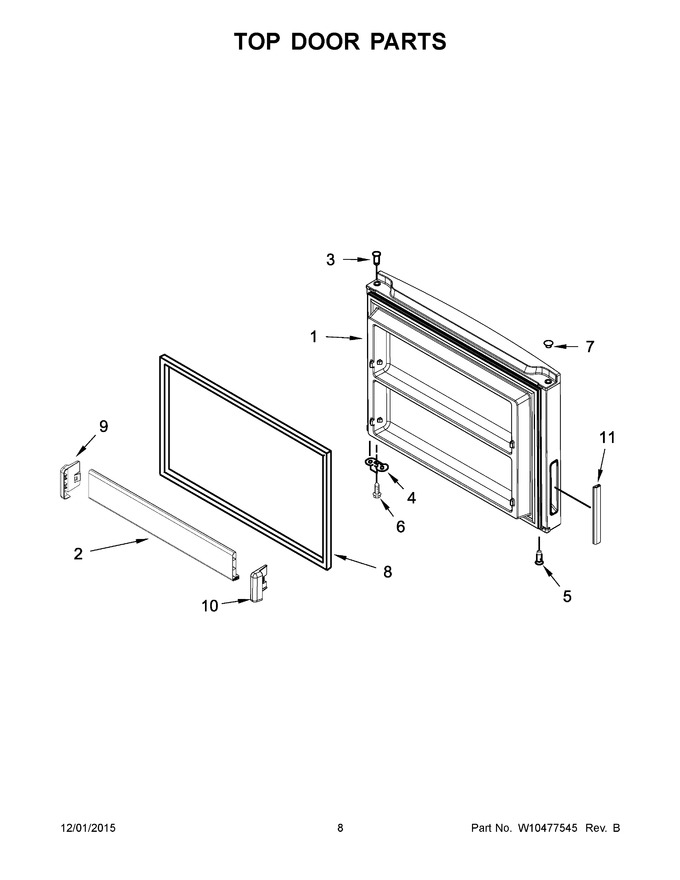

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10429704 | Top Door (graphite) |
|
- | |||||
| 2 | W10469910 | Trim, Door |
|
$ 164.72 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 5 | W11189115 | Thimble (black) (Replaces: W10334042) |
|
Immediately | $ 12.71 | ||||
| 6 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 7 | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
Immediately | $ 24.21 | ||||
| 8 | 2177304 | Gasket, Door (black) (Replaces: 2214968) |
|
$ 324.69 | |||||
| 9 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 10 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 11 | W10174743 | Handle, Cup (black) |
|
$ 15.93 |
