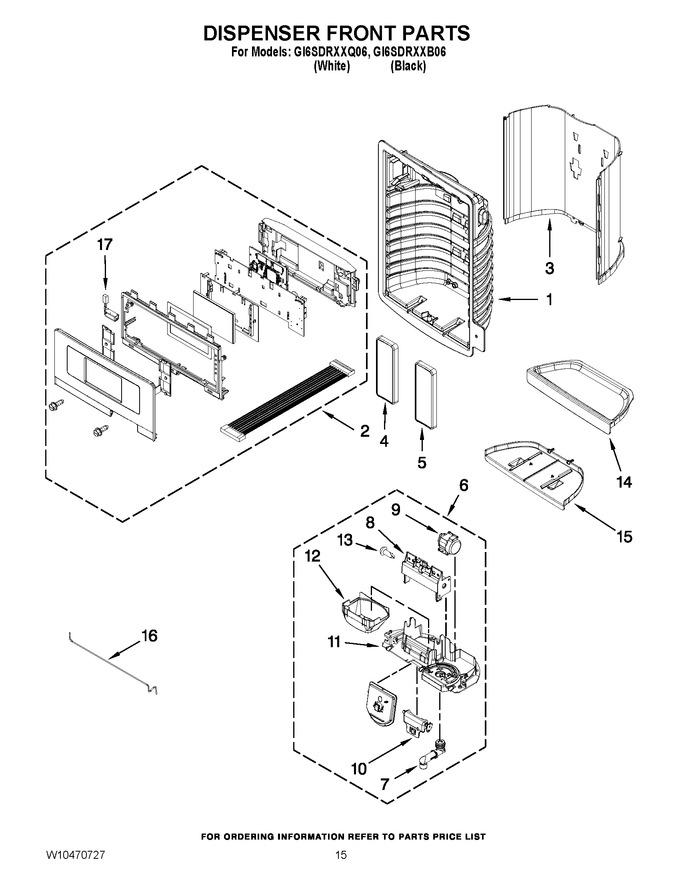

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11184112		Ui Assembly   (Replaces: W10337911)				$ 406.73
3	W11045975		False, Wall, Dispenser (white)   (Replaces: W10215699)		Appelez-nous	-
3	W11045976		False, Wall, Dispenser (black)   (Replaces: W10233560)				$ 43.18
4	W10334795		Pad, Ice (white)		Appelez-nous	-
4	W10368729		Pad, Ice (black)   (Replaces: W10334798)				$ 308.78
5	W10334819		Pad, Water (white)		Appelez-nous	-
5	W10368729		Pad, Water (black)   (Replaces: W10334822)				$ 308.78
6	WPW10353552		Separator Assy.   (Replaces: W10353552)				$ 166.29
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	W10278987		Separator		Appelez-nous	-
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	W10174818		Clip-motor Cplng.		Appelez-nous	-
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 65.93
14	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 65.90
15	W10267861		Slide Tray, Dispenser (black)				$ 74.39
15	W10267860		Slide Tray, Dispenser (white/apollo Grey)		Appelez-nous	-
16	W10296451		Tube, Water				$ 53.54
17	W11290115		Led   (Replaces: W10238083)				$ 84.45
