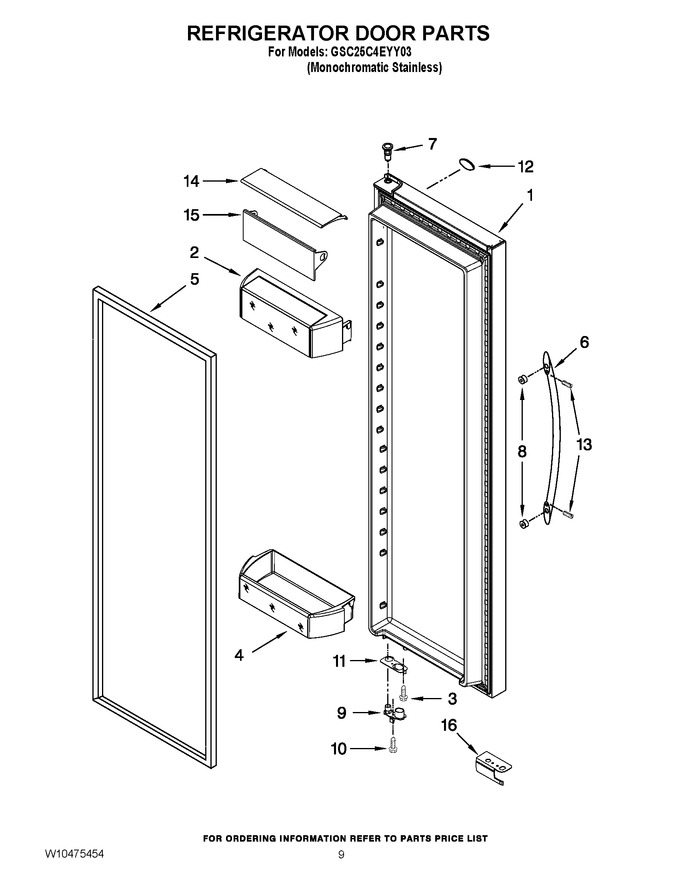

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10395378		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
2	W10336573		Door Compartment Assembly		Appelez-nous	-
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	WPW10335220		Door Bin, Gallon   (Replaces: W10335219)				$ 93.59
5	W10355582		Door Gasket, Magnetic   (Replaces: W10249916)				$ 341.26
6	WPW10670421		Handle   (Replaces: W10311213)				$ 254.15
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
9	WPW10257203		Door Closer, Upper Cam   (Replaces: W10257203)				$ 12.96
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 80.24
12	2220214		Nameplate (gold)				$ 32.43
13	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
14	WPW10316883		Lid, Compartment   (Replaces: W10316883)				$ 67.67
15	W10336570		Window, Door Compartment				$ 30.07
16	W11661847		Cover, Door Stop   (Replaces: W10257218)			Immediately	$ 31.71
