01 - Cooktop, Burner And Grate Parts

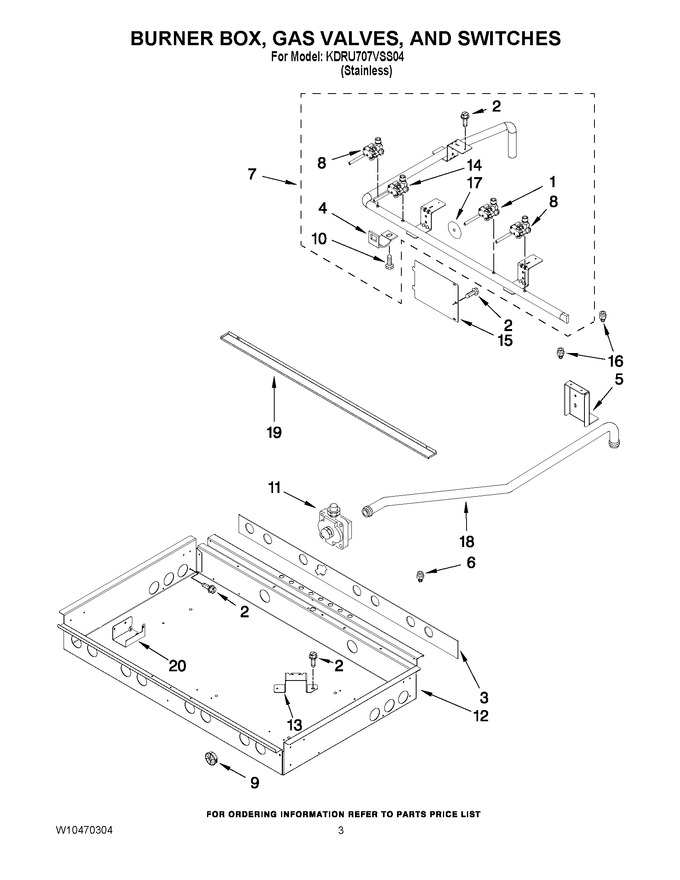

02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Top Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10385583		Valve, Gas (rr)   (Replaces: W10385583)			Immediately	$ 332.10
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W11706804		Insulation, Burner Box   (Replaces: W10276534)		Appelez-nous	-
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 73.99
5	W10115850		Bracket, Pressure Regulator		Appelez-nous	-
6	4453115		Adapter, 1/2`` Female				$ 126.70
7	W10402609		Manifold				$ 303.62
8	WPW10371235		Valve, Single (lr,rf)   (Replaces: W10371235)			Immediately	$ 268.41
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W10293267		Regulator, Pressure				$ 313.91
12	W10371508		Burner Box		Appelez-nous	-
13	W10369547		Bracket, Burner		Appelez-nous	-
14	WPW10385582		Valve, Gas (lf)   (Replaces: W10385582)			Immediately	$ 340.85
15	W10115843		Cover, Ignition		Appelez-nous	-
16	4453116		Adapter, 1/2`` Male				$ 179.43
17	W10423373		Seal, Switch Cover		Appelez-nous	-
18	W10269191		Tube, Pressure Regulator				$ 217.69
19	W10269215		Drip, Tray		Appelez-nous	-
20	W10331561		Bracket, Steam Valve		Appelez-nous	-
NI	W10353154		Tube, Frt Lft			Immediately	$ 172.78
NI	W10353141		Tube, Frt Rt				$ 175.16
NI	WPW10353133		Tube, Back   (Replaces: W10353133)				$ 174.89
NI	W10353152		Tube, Rapid				$ 78.93
NI	W10280797		Tube, Back		Appelez-nous	-
