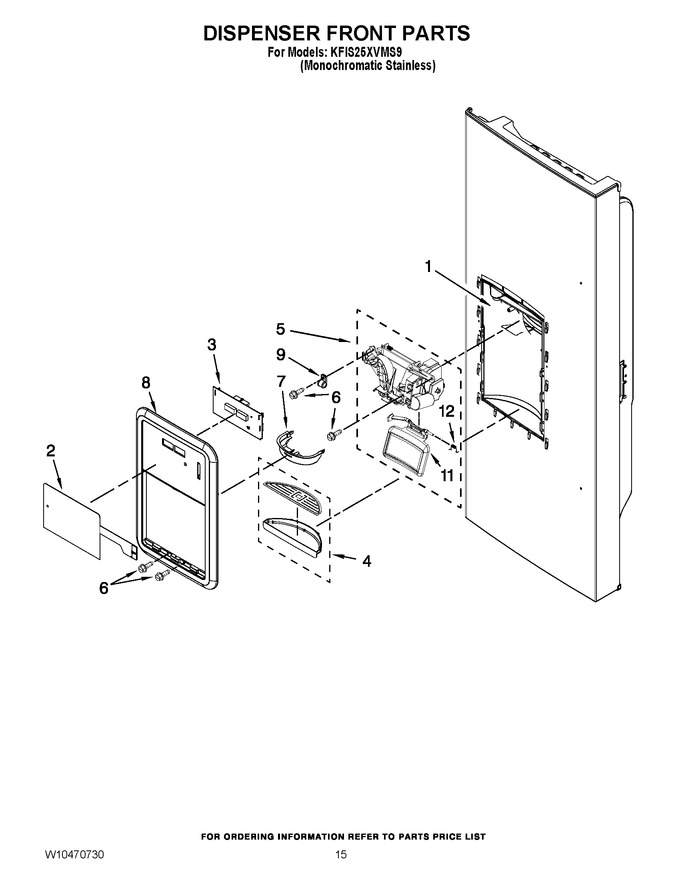

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10180050 | Dispenser Keyboard |
|
- | |||||
| 3 | 13053103SP | Board, L.v. |
|
$ 328.26 | |||||
| 4 | W10448627 | Sump, Dispenser (stainless) |
|
$ 27.50 | |||||
| 5 | WP13005705 | Chute, Ext/yoke (includes Switch) (midnight Grey (dark)) (Replaces: 13005705) |
|
Immediately | $ 329.03 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 55.57 | |||||
| 8 | W10310691 | Facade, Dispenser (apollo Grey) |
|
$ 172.40 | |||||
| 9 | M0108106 | Clamp, Tube |
|
$ 69.95 | |||||
| 11 | WPW10185233 | Yoke/pad Assy. Midnight Grey (dark) (Replaces: W10185233) |
|
$ 85.43 | |||||
| 12 | WP12565502 | Spring (Replaces: 12565502) |
|
$ 8.43 |
