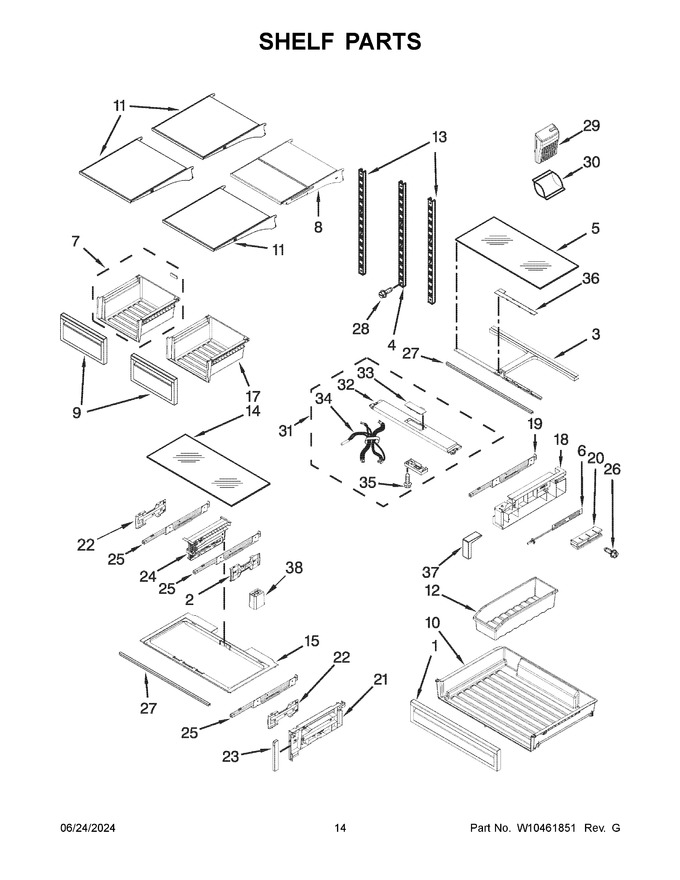

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11034025		Front, Pantry   (Replaces: W10510429)			Immediately	$ 254.34
2	W10530317		Plate, Slide Center				$ 13.75
3	WPW10489978		Support, Pantry   (Replaces: W10489978)				$ 50.62
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 32.30
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 202.57
6	W10342618		Heater, Pantry				$ 79.25
7	W10919809		Pan, Crisper   (Replaces: W10397313)				$ 142.99
8	WPW10737427		Shelf, Tuck   (Replaces: W10487646)				$ 255.20
9	WPW10550026		Front, Crisper   (Replaces: W10550026)			Immediately	$ 106.98
10	W10514690		Pan, Pantry		Appelez-nous	-
11	W10467426		Shelf, Fixed		Appelez-nous	-
12	W10467369		Divider, Pantry				$ 24.81
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 45.56
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 298.54
15	W10316419		Cover, Crisper				$ 186.40
17	W10248524		Pan, Crisper				$ 60.21
18	W10852648		Plate, Side Pantry (left Hand)   (Replaces: W10248834)				$ 124.59
19	W10248531		Slide, Pantry (left Hand)				$ 133.89
20	W10432697		Insulation, Sideplate				$ 13.17
21	W11315181		Plate, Crisper (left Hand)   (Replaces: W10530318)				$ 72.12
22	W10530316		Plate, Side				$ 24.69
23	W10467415		Plate, Crisper Front				$ 65.06
24	W10530307		Track, Center				$ 80.34
25	W11233912		Slide, Crisper   (Replaces: W10248819)				$ 255.99
26	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 120.65
28	W10423560		Screw		Appelez-nous	-
29	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 29.35
30	W10346771		Filter, Produce Preserver		Appelez-nous	-
31	WPW10732682		Cover, Front (includes Led Assembly)   (Replaces: W10584145)				$ 377.13
32	W10248837		Cover, Top		Appelez-nous	-
33	WPW10565995		Assembly, User Interface   (Replaces: W10565995)			Immediately	$ 308.66
34	W10610324		Harness, Wire (includes Thermistor)   (Replaces: W10539187)				$ 116.96
35	W11311945		Screw   (Replaces: 12990204)				$ 13.25
36	W10490266		Support, Pantry Cover (includes Gasket)				$ 78.62
37	W10467416		Plate, Pantry Front				$ 34.43
38	W10530315		Support, Crisper				$ 15.30
18A	WPW10317523		Plate, Side Pantry (right Hand)   (Replaces: W10317523)				$ 128.66
19A	W10248532		Slide, Pantry (right Hand)				$ 213.18
21A	W11315180		Plate, Crisper (right Hand)   (Replaces: W10530306)				$ 22.46
