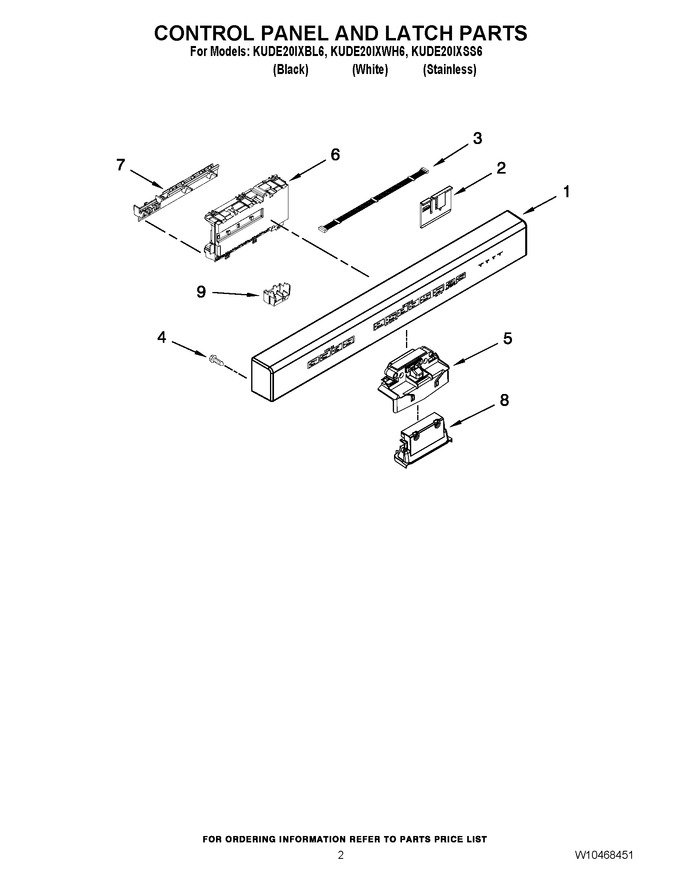

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10386823 | Console Assembly (stainless) |
|
- | |||||
| 1 | W10386821 | Console Assembly (black) |
|
- | |||||
| 1 | WPW10500180 | Console Assembly (white) (Replaces: W10386822) |
|
$ 376.36 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | WPW10195666 | Jumper (Replaces: W10195666) |
|
$ 23.12 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10370003) |
|
Immediately | $ 39.09 | ||||
| 6 | W10473198 | Control, Electronic (Replaces: W10461374) |
|
Immediately | $ 283.77 | ||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | W10195835 | Handle (grey) |
|
$ 52.05 | |||||
| 8 | WPW10195718 | Handle (black) (Replaces: W10195718) |
|
$ 133.15 | |||||
| 8 | W10195833 | Handle (white) |
|
$ 50.72 | |||||
| 9 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 |
