SELECT A DIAGRAM

01 - Cover Sheet

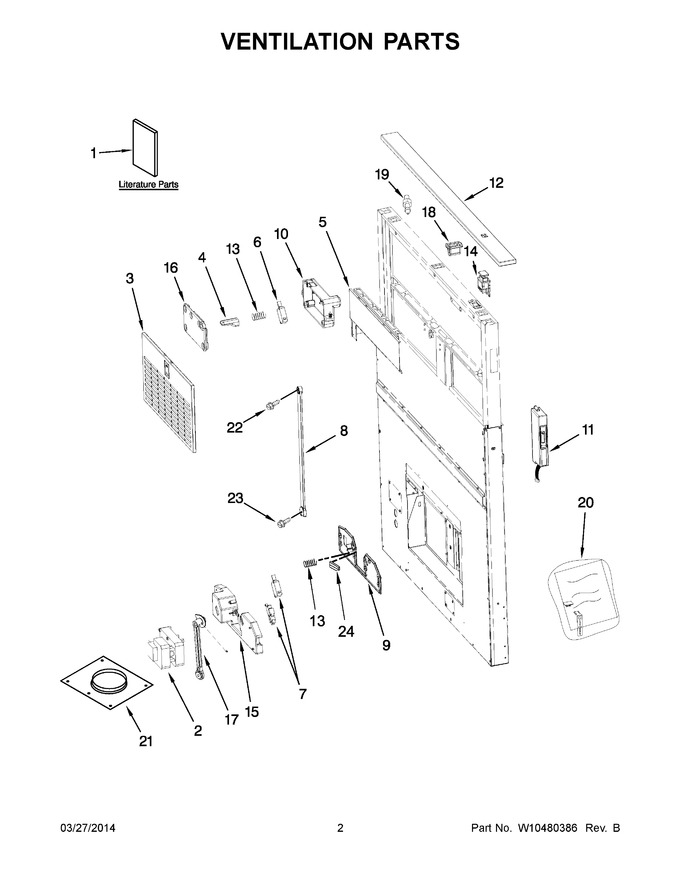

02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10342489		Use And Care Guide /installation Instructions		Appelez-nous	-
2	WPW10398274		Motor, Plenum   (Replaces: W10398274)			Immediately	$ 337.92
3	W10422876		Filter, Grease (36`` Model)				$ 259.08
4	W10421258		Button, Filters				$ 17.50
5	W10421449		Cover, Front (36`` Model)				$ 197.56
6	W11666423		Microswitch   (Replaces: W10398343)			Immediately	$ 89.06
7	WPW10398341		Microswitch   (Replaces: W10398341)			Immediately	$ 79.50
8	WPW10421280		Arm, Upper   (Replaces: W10421280)				$ 100.85
9	W10833182		Cover, Front Switch Holder Plenum Motor   (Replaces: W10421255)			Immediately	$ 174.83
10	W11666423		Cover, Back Switch Holder Filters   (Replaces: W10421257)			Immediately	$ 89.06
11	W10421480		Control, Hood		Appelez-nous	-
12	WPW10421497		Trim, Top (36`` Stainless)   (Replaces: W10421497)				$ 259.67
13	WPW10469579		Spring, Button   (Replaces: W10469579)			Immediately	$ 20.23
14	W11230930		Button, Control   (Replaces: W10421483)			Immediately	$ 106.40
15	W10833182		Cover, Back Switch Holder Plenum Motor   (Replaces: W10421254)			Immediately	$ 174.83
16	W11666423		Cover, Front Switch Holder Filters   (Replaces: W10421256)			Immediately	$ 89.06
17	WPW10421277		Arm, Lower   (Replaces: W10421277)			Immediately	$ 84.63
18	WPW10421518		Clip, Top Trim   (Replaces: W10421518)				$ 9.33
19	W10421517		Clip, Top Trim				$ 9.05
20	W11188522		Hardware, Installation   (Replaces: W10422167)			Immediately	$ 116.41
21	W10421260		10`` Collar, Vent		Appelez-nous	-
22	WPW10422765		Screw Upper   (Replaces: W10422765)				$ 24.77
23	WPW10422764		Screw Lower   (Replaces: W10422764)			Immediately	$ 26.92
24	WPW10681777		Cam, Plenum Arm Lower   (Replaces: W10681777)			Immediately	$ 75.67
NI	W10387675		Accessories, Trim, Top (36`` Black)				$ 351.88
NI	W10388170		Accessories, Trim, Top (36`` White)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
