SELECT A DIAGRAM
01 - Cabinet Parts

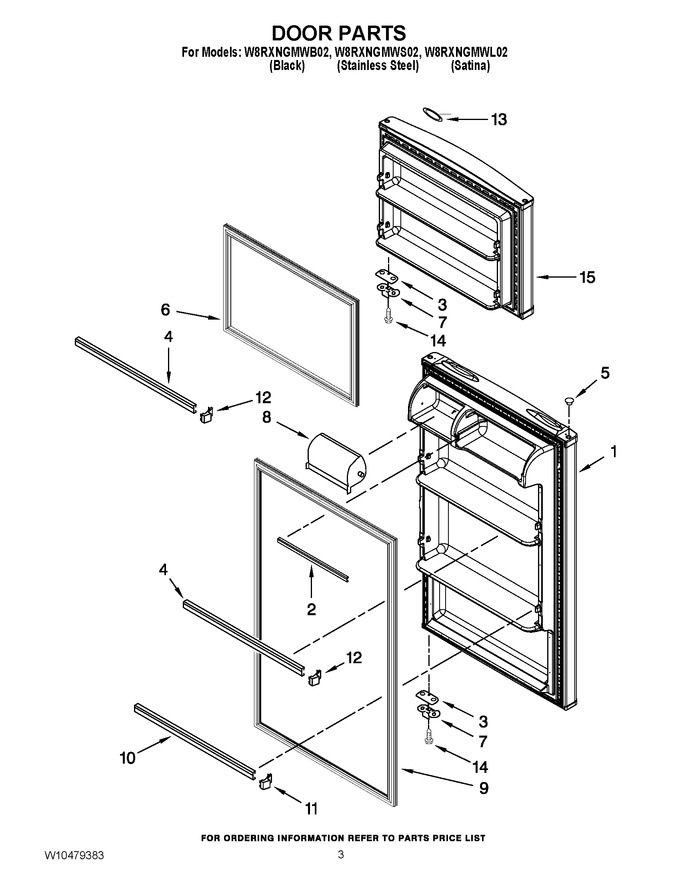

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10209801 | Refrigerator Door (includes Item 9) (stainless Steel) |
|
- | |||||
| 1 | 2265677L | Refrigerator Door (includes Item 9) (satina) |
|
- | |||||
| 1 | 2265677B | Refrigerator Door (includes Item 9) (black) |
|
- | |||||
| 2 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 3 | 2258681B | Shim, Door Stop |
|
$ 45.33 | |||||
| 4 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 5 | WP2212651 | Hole Plug (Replaces: 2212651) |
|
$ 24.21 | |||||
| 6 | WP2319263B | Door Gasket, Magnetic (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 7 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 8 | WP2207942 | Door Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (Replaces: 2264723) |
|
$ 323.85 | |||||
| 10 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 111.69 | |||||
| 11 | WP2195916K | End Cap, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 12 | WP2156003 | End Cap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 14 | W10276642 | Screw 8-16 X .580 (Replaces: 8533904) |
|
$ 6.41 | |||||
| 15 | 2265678L | Freezer Door (includes Item 6) (satina) |
|
- | |||||
| 15 | W10209802 | Freezer Door (includes Item 6) (stainless Steel) |
|
- | |||||
| 15 | 2265678B | Freezer Door (includes Item 6) (black) |
|
- |
