SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts

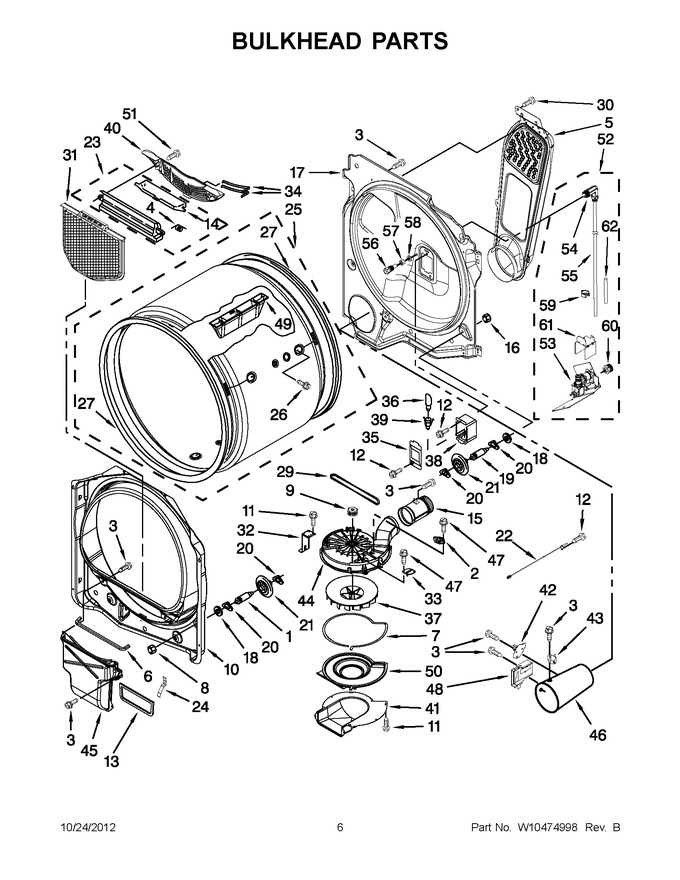

03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, Drum Roller -right Hand Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
3	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
4	WP3394986		Spring, Lint Screen Door   (Replaces: 3394986)				$ 93.47
5	W10385948		Air Duct Assembly				$ 132.94
6	WP697813		Seal, Outlet Housing   (Replaces: 697813)			Immediately	$ 8.37
7	WP8573068		Seal, Blower Cover   (Replaces: 8573068)				$ 92.58
8	W11812294		Nut, Hex   (Replaces: 3934666)				$ 12.77
9	WP8544739		Pulley, Blower   (Replaces: 8544739)				$ 133.27
10	WP8557244		Bulkhead, Front   (Replaces: 8557244)				$ 333.57
11	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
12	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
13	8544721		Seal, Lint Duct				$ 5.65
14	W11222846		Door, Lint Screen   (Replaces: 3394984)			Immediately	$ 213.91
15	8544755		Pipe, Exhaust				$ 43.67
16	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 10.01
17	W10139797		Bulkhead, Rear				$ 350.48
18	W11236646		Washer   (Replaces: 3387459)			Immediately	$ 14.73
19	WPW10359272		Shaft, Drum Roller - Left Hand Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Washer, Tri Ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	WPW10419068		Thermistor, Gas Inlet   (Replaces: W10419068)				$ 104.45
23	W11129408		Housing, Outlet   (Replaces: 3394985)			Immediately	$ 53.28
24	8573070		Clip, Lint Duct				$ 12.41
25	W10549614		Drum Assembly   (Replaces: 8557269)				$ 500.41
26	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
27	280140		Seal, Drum   (Replaces: W10116344)			Immediately	$ 73.88
29	WP8544742		Belt, Blower   (Replaces: 8544742)			Immediately	$ 55.00
30	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
31	W10120998		Screen, Lint   (Replaces: W10049370)				$ 67.16
32	8544741		Bracket, Blower Housing				$ 38.71
33	WP3390719		Thermal-fuse (91c)   (Replaces: 3390719)			Immediately	$ 31.57
34	WP3387223		Sensor, Electrode   (Replaces: 3387223)			Immediately	$ 6.17
35	W11226088		Lens, Drum Light   (Replaces: 3402841)				$ 32.64
36	WP22002263		Bulb, Light   (Replaces: 3406124)			Immediately	$ 14.85
37	WP8544737		Wheel, Blower   (Replaces: 8544737)			Immediately	$ 154.84
38	3977373		Bracket, Drum Light				$ 111.08
39	W11222979		Socket, Light   (Replaces: W10214261)			Immediately	$ 118.79
40	W11117302		Grill, Outlet   (Replaces: 8544723)			Immediately	$ 158.67
41	8544718		Duct, Inlet Blower				$ 72.39
42	WP8573713		Cut-off, Thermal   (Replaces: 8573713)			Immediately	$ 72.51
43	WP8573028		Thermostat, High-limit 205 F (96 C)   (Replaces: 8573028)				$ 113.26
44	W10256512		Housing, Blower				$ 70.10
45	8544786		Lint Duct Assembly				$ 91.17
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 185.29
47	3350424		Screw				$ 12.72
48	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
49	8563860		Baffle, Drum				$ 156.50
50	8544719		Cover, Blower				$ 76.29
51	WP3387230		Screw   (Replaces: 3387230)			Immediately	$ 8.54
52	WPW10130506		Valve & Hose Assembly   (Replaces: W10130506)				$ 334.36
53	WPW10129424		Valve & Bracket Assembly   (Replaces: W10129424)				$ 234.96
54	W10410316		Nozzle & Hose Assembly   (Replaces: W10348593)				$ 129.91
55	W10347743		Hose (not Serviced)		Appelez-nous	-
56	WPW10277503		Nozzle & Screen Assembly   (Replaces: W10277503)				$ 255.65
57	W10044628		Nut, Brass				$ 97.27
58	W10044579		Washer, Nozzle				$ 9.22
59	W10044599		Clip, Push-to-connect				$ 15.00
60	W10859554		Coupling, Hose   (Replaces: W10044605)				$ 86.06
61	W10160575		Cover, Myst Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
