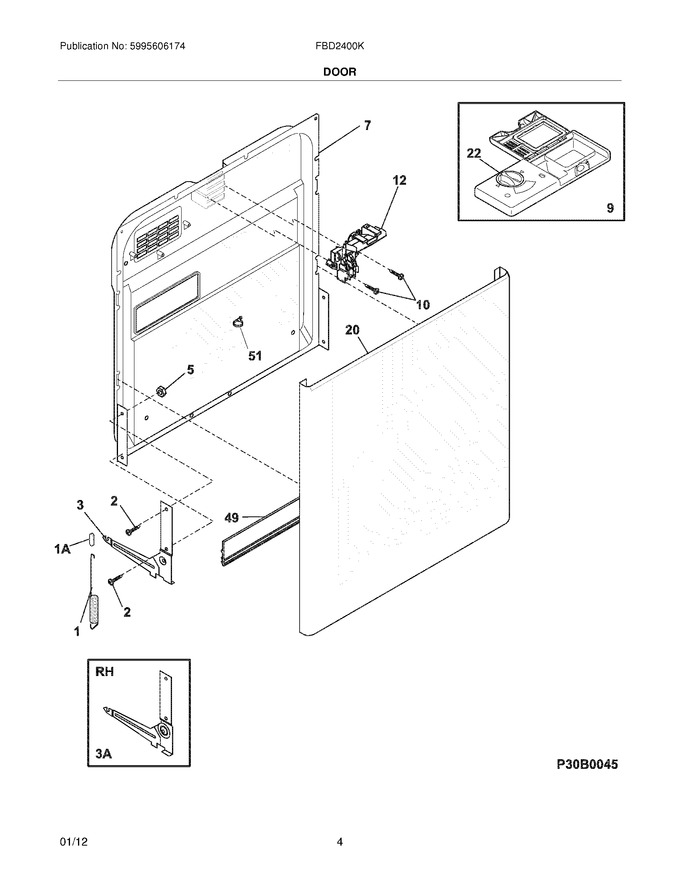

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring,door ,(2) |
|
Immediately | $ 40.34 | ||||
| 2 | 154093301 | Screw,arm Assy ,(4) |
|
Immediately | $ 2.36 | ||||
| 3 | 5304513274 | Arm Assy,lh (Replaces: 154691201) |
|
Immediately | $ 73.96 | ||||
| 5 | 154079601 | Nut,arm Assy ,and Handle Mtg. |
|
$ 0.46 | |||||
| 7 | 154494601 | Liner,door Assy. |
|
$ 239.60 | |||||
| 9 | 154574401 | Dispenser,det/rinse Aid ,w/o Reed |
|
Immediately | $ 114.19 | ||||
| 10 | 154103702 | Screw-latch Mtg, (2) |
|
$ 14.96 | |||||
| 20 | 154828804 | Door,bisque ,w/moisture Barr |
|
- | |||||
| 22 | 154388801 | Cap,rinse Aid |
|
Immediately | $ 28.92 | ||||
| 49 | 809006501 | Gasket,door ,bottom (Replaces: 154576501) |
|
Immediately | $ 40.24 | ||||
| 51 | 154320301 | Clamp,drip Loop ,wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage,door Spring ,(2) |
|
Immediately | $ 30.30 | ||||
| 3A | 5304513274 | Arm Assy,rh (Replaces: 154691101) |
|
Immediately | $ 73.96 | ||||
| F12 | A00104102 | Latch Assy,bisque (Replaces: 154537304) |
|
$ 101.21 | |||||
| NI | 154686401 | Bearing,hinge Pin |
|
$ 11.81 | |||||
| NI | 5304525214 | Shield,dispenser (Replaces: 154798401) |
|
Immediately | $ 11.25 | ||||
| NI | 154647101 | Hinge Pin,arm Assy |
|
$ 15.75 | |||||
| NI | 154294701 | Screw,no.7 Plas .375 ,(6) ,disp. Assy. |
|
$ 10.24 | |||||
| NI | 154754701 | Screw,truss Hd ,8-18 Type Ab |
|
$ 3.94 |
