SELECT A DIAGRAM

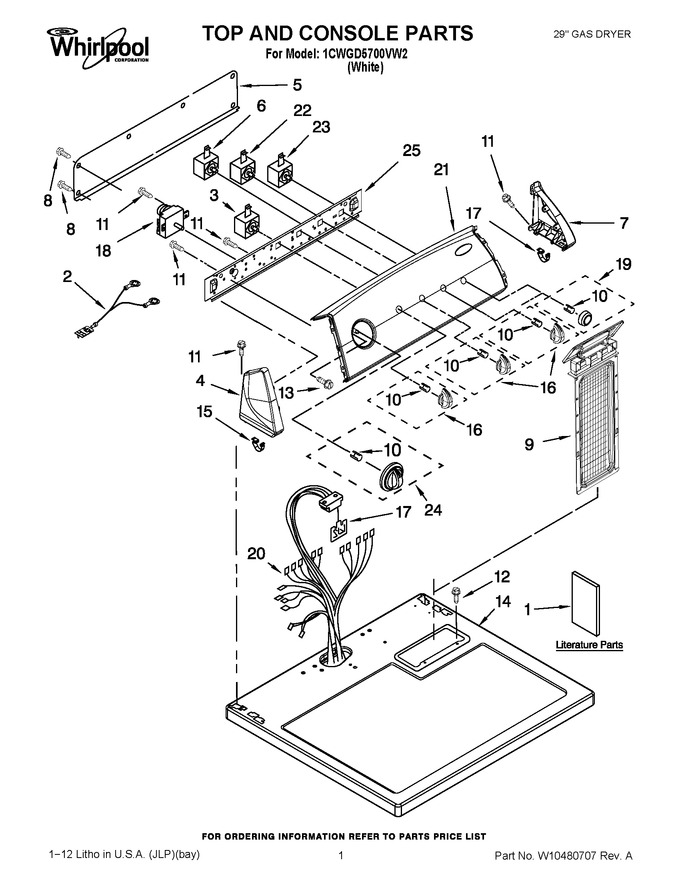

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8299791		Wiring Diagram		Appelez-nous	-
1	W10042950		Sheet, Cycle Feature		Appelez-nous	-
1	W10131643		Installation, Instructions		Appelez-nous	-
1	W10131642		Use & Care Guide		Appelez-nous	-
2	3401668		Wire, Jumper (black)		Appelez-nous	-
3	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 235.13
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 64.76
5	W10103406		Panel, Rear Console				$ 135.31
6	3405154		Switch, Wrinkle Guard				$ 160.52
7	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 65.84
8	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
9	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
10	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 8.25
12	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
13	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
14	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
15	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
16	W10034380		Knob, Control				$ 25.06
17	WPW10476828		C-version Control   (Replaces: 8558178)			Immediately	$ 329.93
18	WP3406725		Timer Assembly (60 Hz.)   (Replaces: 3406725)				$ 387.01
19	W10034770		Knob, Push To Start		Appelez-nous	-
20	8299891		Harness, Wiring		Appelez-nous	-
21	W10280174		Panel, Control		Appelez-nous	-
22	WP3398093		Buzzer, End Of Cycle   (Replaces: 3398093)				$ 153.67
23	WP3398094		Switch, Push To Start   (Replaces: 3398094)			Immediately	$ 88.09
24	W10034750		Timer Knob Assembly				$ 28.27
25	8566052		Bracket, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
