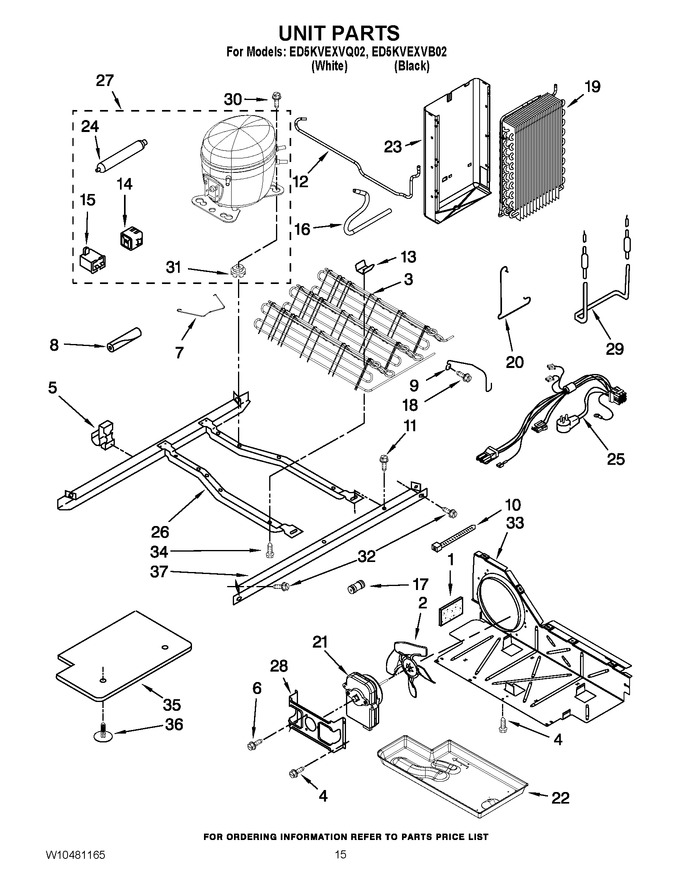

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2217070		Pad, Foam				$ 19.87
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 56.52
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 291.11
4	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 7.54
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 10.09
7	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 10.68
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	2260517		Guard, Fan		Appelez-nous	-
10	WPW10339879		Strap   (Replaces: 2172840)				$ 7.47
11	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.06
12	W10528574		Tube Suction   (Replaces: W10177642)				$ 144.32
13	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 17.44
14	WPW10189190		Start Device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 118.16
15	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 52.97
16	W10371237		Process Tube		Appelez-nous	-
17	WPW10334458		Connector   (Replaces: W10271540)				$ 20.40
18	WP489478		Screw 8-18 X 1/2   (Replaces: W10001260)				$ 7.36
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
20	2161324		Clamp		Appelez-nous	-
21	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 111.76
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
23	2217194		Heat Shield		Appelez-nous	-
24	WPW10143759		Drier   (Replaces: W10423407)			Immediately	$ 27.70
25	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: W10309395)				$ 277.52
26	W10196321		Unit Mounting Frame		Appelez-nous	-
27	W10233961		Compressor (includes Items 14, 15, 24, & 31) (also Order 876765 Tube Kit)   (Replaces: W10183575)				$ 579.06
28	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 11.64
29	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 81.63
30	W11661574		Screw 1/4-28 X 1.285   (Replaces: 489473)				$ 12.86
31	W11661108		Grommet   (Replaces: 2183042)				$ 13.69
32	489340		Screw 5/16-18 X .630		Appelez-nous	-
33	W10896764		Air Baffle   (Replaces: W10411518)				$ 91.08
34	W11544659		Screw 8-18 X 1-1/4   (Replaces: 8281232)				$ 12.92
35	2304899		Unit Cover, Bottom (includes Item 36)		Appelez-nous	-
36	489396		Clip				$ 10.13
37	2305374		Unit Mounting Rail				$ 76.20
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access (3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
