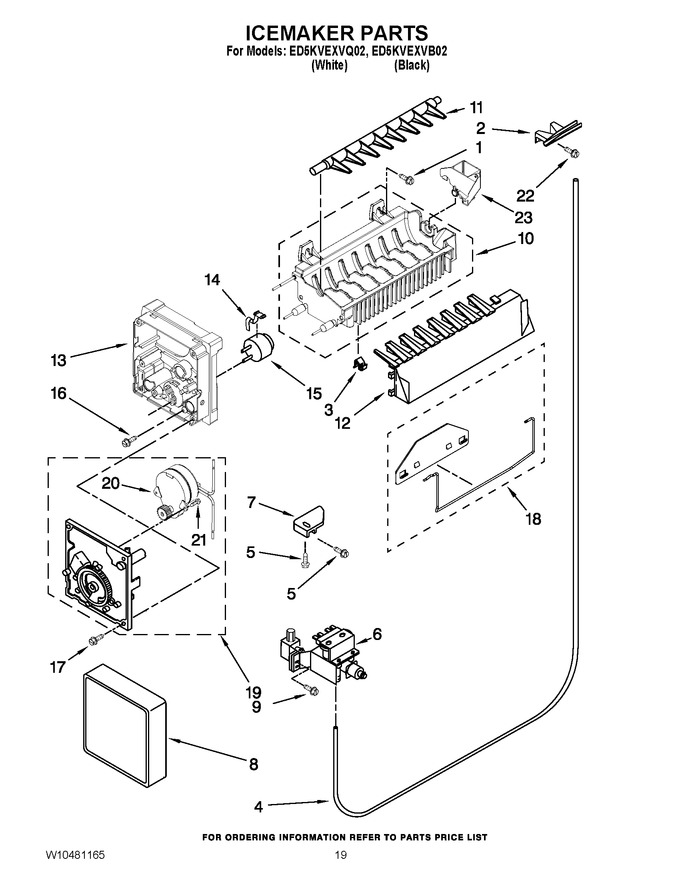

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10141596 | Screw 8-15 X .813 |
|
$ 8.30 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 29.17 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | W10408179 | Filter Valve Asm (Replaces: 2188708) |
|
Immediately | $ 94.24 | ||||
| 7 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 8 | WPW10289690 | Cover (Replaces: W10289690) |
|
$ 7.94 | |||||
| 9 | WPW10141625 | Screw 8-32 X 1/2 (Replaces: W10141625) |
|
$ 20.00 | |||||
| 10 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 103.18 | |||||
| 16 | 8533917 | Screw 10-32 X .830 |
|
$ 12.64 | |||||
| 17 | WP681249 | Screw 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 18 | W11807379 | Shut Off Arm Assy (Replaces: 2304354) |
|
Immediately | $ 56.89 | ||||
| 19 | 8201515 | Module Assembly (includes Items 20 & 21) (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 20 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 143.80 | ||||
| 21 | 489136 | Screw 3-24 X .360 |
|
$ 9.72 | |||||
| 22 | WP489478 | Screw 8-18 X 1/2 (Replaces: W10001260) |
|
$ 7.36 | |||||
| 23 | W10122561 | Cup, Fill |
|
$ 26.24 | |||||
| 100 | WPW10190965 | Complete Icemaker Assembly (Replaces: W10190966) |
|
Immediately | $ 98.69 |
