01 - Cabinet And Door Parts

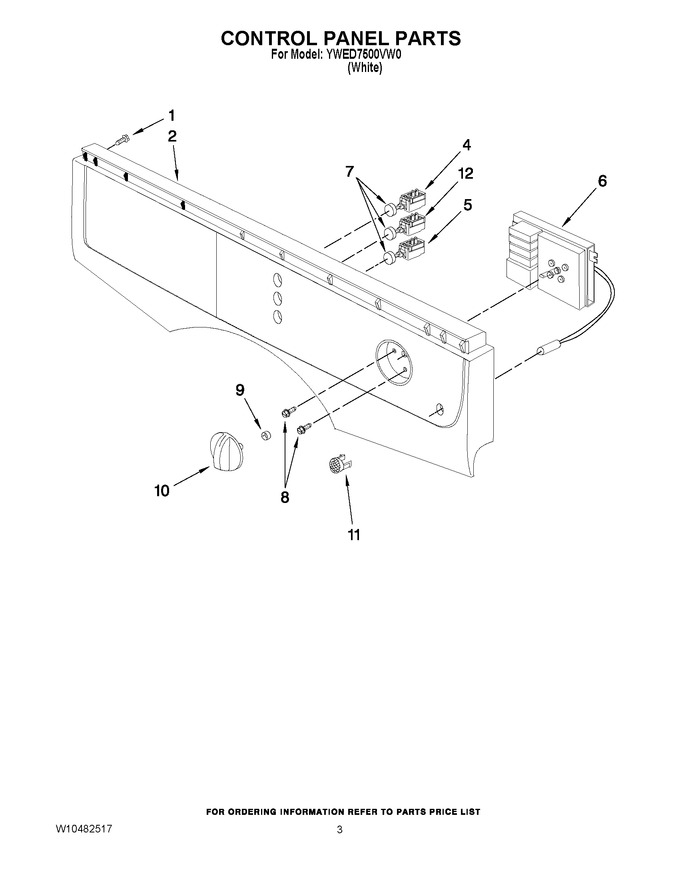

02 - Control Panel Parts
03 - Drum And Motor Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 8182338) |
|
Immediately | $ 14.72 | ||||
| 2 | W10205135 | Panel. Control |
|
$ 402.50 | |||||
| 4 | 8182576 | Switch & Button Assembly (start) |
|
- | |||||
| 5 | WP8182395 | Switch & Button Assembly (on/off) (Replaces: W10119104) |
|
Immediately | $ 146.71 | ||||
| 6 | WPW10404695 | Timer & Indicator Light Assembly (indicator Light Not Serviced Separately) (Replaces: W10497407) |
|
$ 471.69 | |||||
| 7 | 8182575 | Button, Push |
|
$ 30.77 | |||||
| 8 | 8169479 | Screw, Timer (Replaces: 8182426) |
|
$ 7.30 | |||||
| 9 | WP8182361 | Clip, Knob (Replaces: 8182361) |
|
$ 143.38 | |||||
| 10 | W10233963 | Knob (Replaces: W10205136) |
|
Immediately | $ 101.37 | ||||
| 11 | 8182532 | Lens, Indicator |
|
$ 100.04 | |||||
| 12 | W10119105 | Switch & Button Assembly (temperature) |
|
$ 147.70 |
