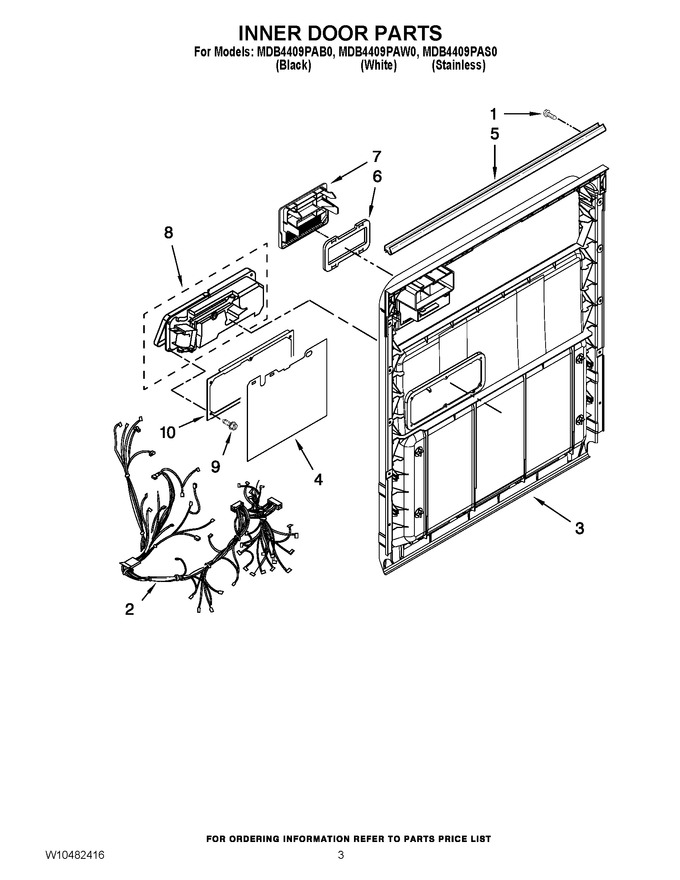

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | WPW10444720 | Wiring Harness (Replaces: W10444720) |
|
$ 228.86 | |||||
| 3 | WPW10254547 | Inner Door Mastic Assembly (Replaces: W10254547) |
|
$ 275.73 | |||||
| 4 | W10385977 | Cover, Dispenser (Replaces: W10421636) |
|
$ 30.61 | |||||
| 5 | WP8269296 | Seal, Door (Replaces: 8269296) |
|
Immediately | $ 188.17 | ||||
| 6 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 12.19 | |||||
| 7 | WPW10254548 | Cover, Vent (also Order Item 6) (Replaces: W10254548) |
|
$ 73.14 | |||||
| 8 | WPW10428215 | Dispenser, Assembly (Replaces: W10428215) |
|
$ 247.11 | |||||
| 9 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 10 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 37.79 |
