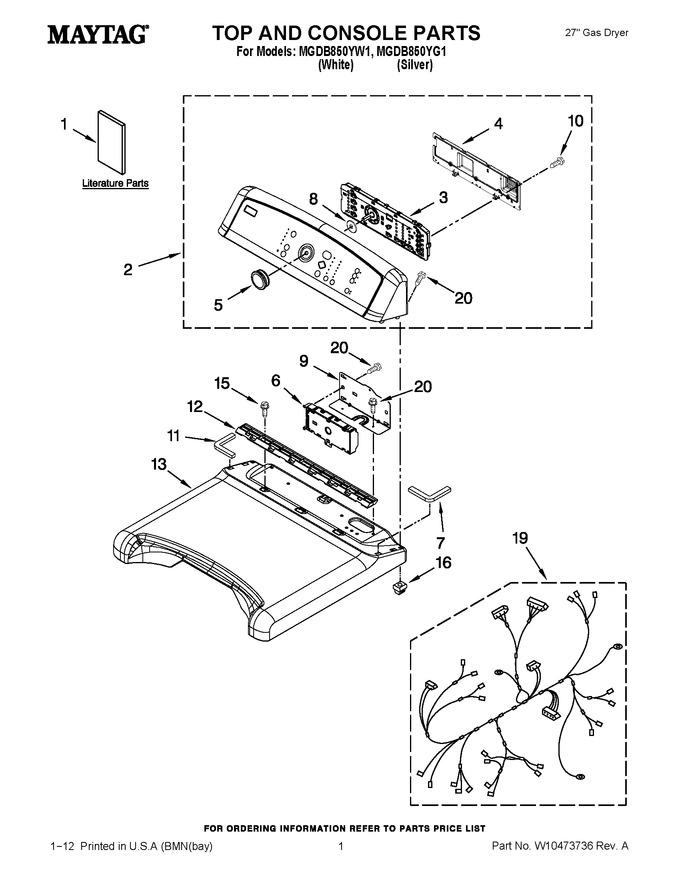

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10393006 | Tech, Sheet |
|
- | |||||
| 1 | W10388780 | Guide, Use & Care |
|
- | |||||
| 1 | W10392126 | Installation, Instruction |
|
- | |||||
| 2 | W10338345 | Console Assembly (white) |
|
$ 353.64 | |||||
| 2 | W10416110 | Console Assembly (silver) |
|
$ 380.67 | |||||
| 3 | W10388670 | Assembly, User Interface |
|
$ 275.73 | |||||
| 4 | W10051124 | Cover, Ui Assembly |
|
$ 263.67 | |||||
| 5 | WPW10338554 | Knob, Assembly (Replaces: W10338554) |
|
$ 64.58 | |||||
| 6 | WPW10432257 | Control Electronic (Replaces: W10432257) |
|
Immediately | $ 333.62 | ||||
| 7 | W10219694 | Seal, Top (rh) |
|
- | |||||
| 8 | 8572039 | Seal, Ui |
|
- | |||||
| 9 | 8563853 | Bracket, Machine Controller |
|
- | |||||
| 10 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 11 | W10219695 | Seal, Top (lh) |
|
- | |||||
| 12 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 13 | W10338836 | Top (silver User Interface) |
|
$ 142.15 | |||||
| 13 | W10223157 | Top (white) |
|
$ 159.40 | |||||
| 15 | WP33001882 | Screw, 8-18 X 1/2 (Replaces: 337686) |
|
$ 83.71 | |||||
| 16 | W10112673 | Clip, Console |
|
$ 9.75 | |||||
| 19 | W10393461 | Harness, Wiring Main |
|
$ 247.97 | |||||
| 20 | W10131402 | Screw |
|
- |
