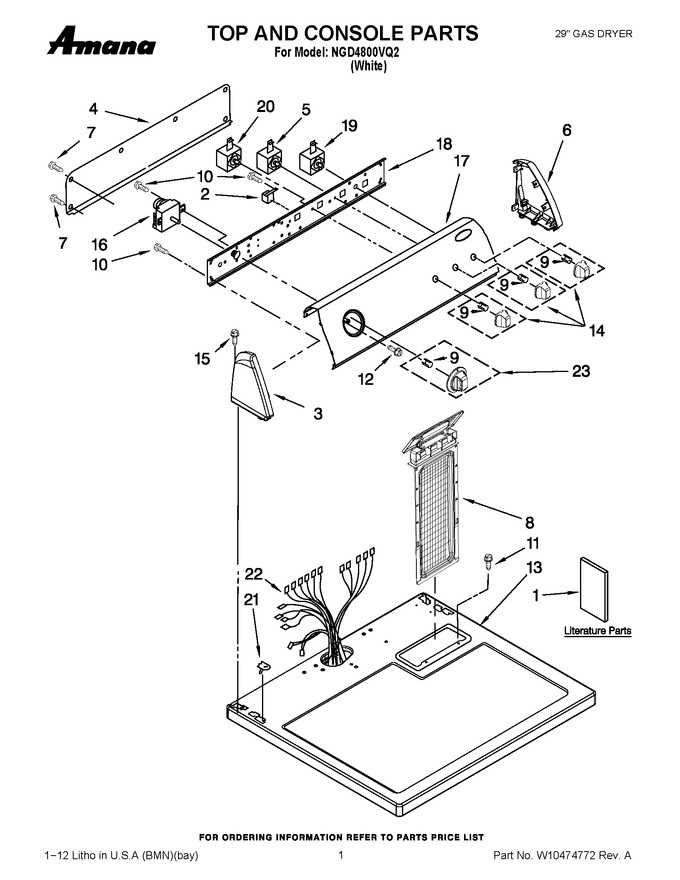

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185985		Wiring Diagram		Appelez-nous	-
1	WP90767		Instructions, Installation   (Replaces: 3348629)			Immediately	$ 7.82
1	W10287572		Use & Care Guide		Appelez-nous	-
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
3	8271365		Cap, End (l.h.)		Appelez-nous	-
4	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
5	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
6	8271359		Cap, End (r.h.)		Appelez-nous	-
7	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
8	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 52.03
9	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
10	WP90767		Screw, 8-18 X 5/16   (Replaces: 3348629)			Immediately	$ 7.82
11	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
12	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
13	8557930		Top		Appelez-nous	-
14	W10196503		Knob, Control				$ 5.65
15	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
16	WPW10185981		Timer Assembly (60 Hz.)   (Replaces: W10185981)				$ 329.61
17	W10086735		Panel Control				$ 24.76
18	8271418		Bracket, Control				$ 57.15
19	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
20	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 145.51
21	WP357213		Nut, Push-in   (Replaces: 357213)				$ 7.39
22	W10278762		Harness, Wiring		Appelez-nous	-
23	WPW10196507		Timer Knob Assembly   (Replaces: W10196507)				$ 57.97
