View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

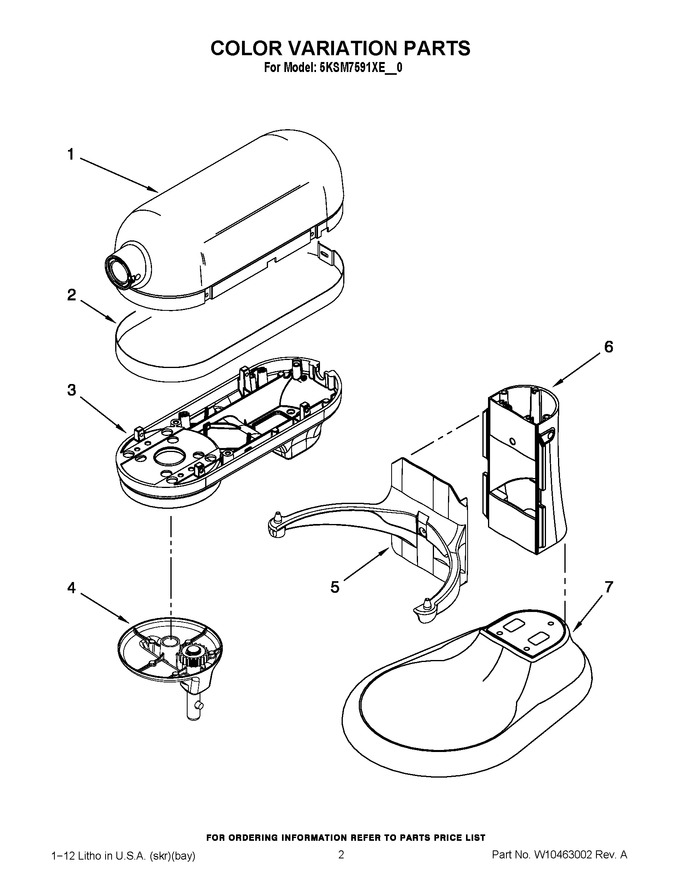

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit
04 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1 | W10454049 | Motor Housing (silver Metallic) |
|
- | |||||
| 2 | W10419455 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10234489 | Lower Gearcase (white) (Replaces: W10234488) |
|
- | |||||
| 3 | W10410014 | Lower Gearcase (empire Red) (Replaces: W10410011) |
|
$ 66.24 | |||||
| 3 | W10450993 | Lower Gearcase (silver Metallic) |
|
- | |||||
| 4 | WPW10420628 | Planetary (white) (Replaces: W10419439) |
|
$ 64.21 | |||||
| 4 | WPW10419426 | Planetary (empire Red) (Replaces: W10419442) |
|
$ 66.18 | |||||
| 4 | W10452357 | Planetary (silver Metallic) |
|
- | |||||
| 5 | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 5 | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5 | W10448648 | Bowl Support And Pins (silver Metallic) |
|
- | |||||
| 6 | W10451002 | Column And Pins (white) |
|
- | |||||
| 6 | WPW10451578 | Column And Pins (empire Red) (Replaces: W10451578) |
|
$ 98.88 | |||||
| 6 | W10451113 | Column And Pins (silver Metallic) |
|
- | |||||
| 7 | 9703690 | Base & Foot Assembly (white) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7 | W10448633 | Base & Foot Assembly (silver Metallic) |
|
- |
