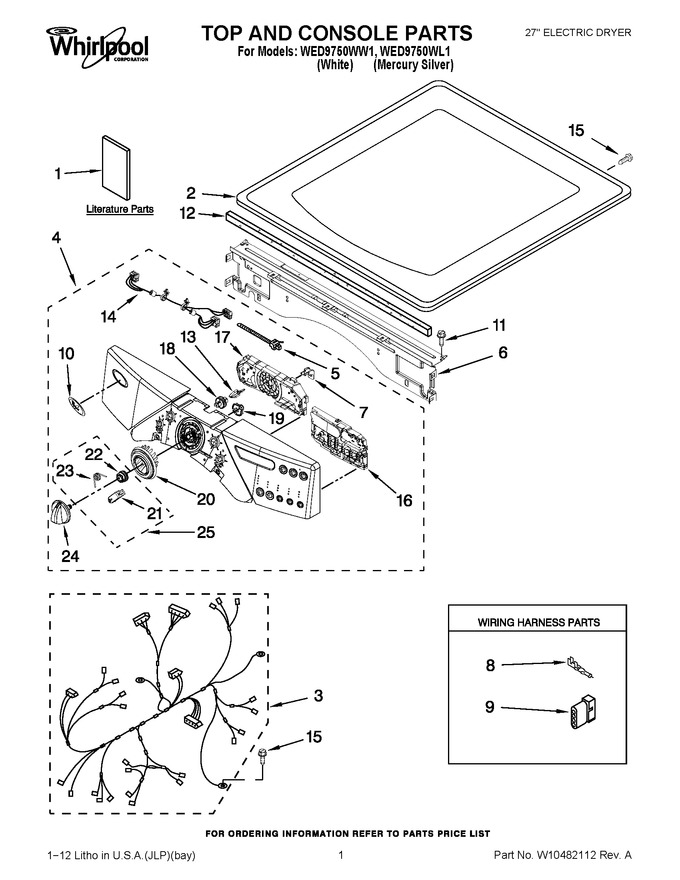

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10477025		Use & Care Guide		Appelez-nous	-
1	W10471644		Installation, Instruction		Appelez-nous	-
1	W10298850		Tech Sheet		Appelez-nous	-
2	W10249739		Top (silver)				$ 127.37
2	3980634		Top (white)		Appelez-nous	-
3	W10111068		Harness, Main		Appelez-nous	-
4	W10251592		Panel, Console (silver)		Appelez-nous	-
4	W10287715		Panel, Console (white)				$ 416.25
5	WP3391018		Cable, Tie   (Replaces: 3391018)				$ 33.43
6	W10215656		Bracket, Console				$ 72.06
7	W10112268		Clip, Harness		Appelez-nous	-
8	WP94614		Terminal   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	W10117943		Badge		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	W10112267		Foam-seal				$ 97.53
13	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
14	W10242906		Harness, Communication				$ 170.16
15	WP693995		Screw, 8-18 X 5/8   (Replaces: 693995)			Immediately	$ 7.55
16	W10288016		User-interface (right)				$ 230.95
17	W10280044		User Interface (center)				$ 223.14
18	W10012430		Encoder-wheel				$ 21.85
19	W10012440		Retainer-snap				$ 12.36
20	W10250089		Knob, Light Ring (includes, Item. 19)				$ 13.46
21	W10012810		Rast, Wheel Holder (service Only With Item. 25)		Appelez-nous	-
22	W10236765		Detent Wheel (service Only With Item. 25)		Appelez-nous	-
23	W10012820		Knob, Spring (service Only With Item. 25)		Appelez-nous	-
24	W10190685		Knob, Control				$ 68.80
25	W10012480		Encoder, Wheel				$ 17.15
