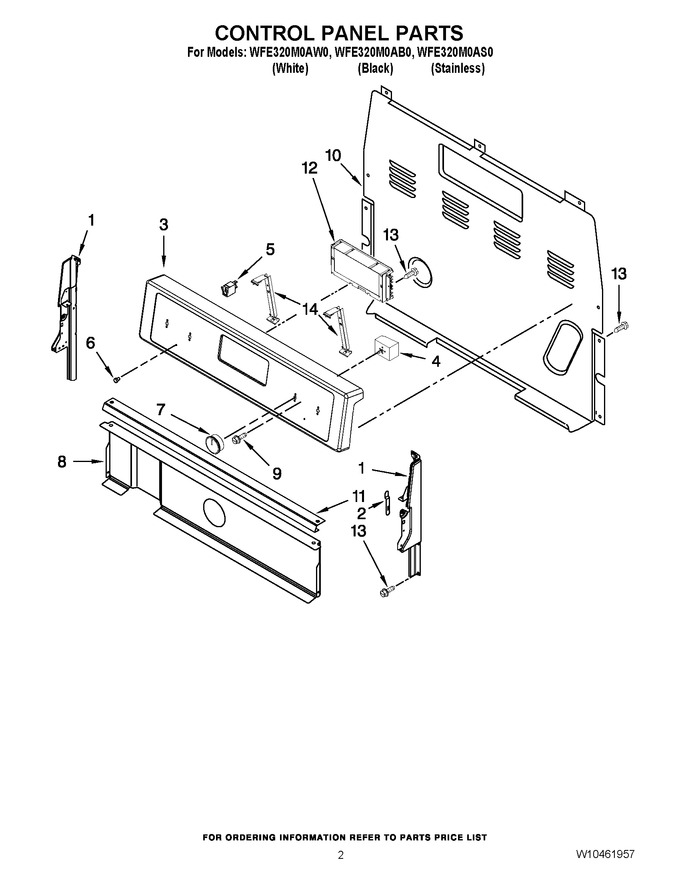

02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 45.17
2	3196200		Clip, Spring				$ 10.45
3	W11251222		Panel, Backguard (stainless)   (Replaces: W10339376)				$ 351.95
3	W11231943		Panel, Backguard (black)   (Replaces: W10333940)				$ 129.61
3	W10370091		Panel, Backguard (white)		Appelez-nous	-
4	WP3149400		Switch, Infinite (right Front)   (Replaces: 3148954)			Immediately	$ 90.51
4	5500-287		Switch, Infinite (left - Right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	WPW10434452		Switch, Infinite (left Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 6.26
7	WPW10490038		Knob (black)   (Replaces: W10339425)				$ 21.54
7	WPW10490037		Knob (white)   (Replaces: W10339426)			Immediately	$ 7.55
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 219.04
11	W10525121		Brkt-mntg Console   (Replaces: W10182322)				$ 98.85
12	W11122557		Control, Range (lcc90) (white)   (Replaces: W10348616)			Immediately	$ 502.99
12	W11122555		Control, Range (lcc90) (black)   (Replaces: W10348615)				$ 502.99
12	W11122560		Control, Range (lcc90) (stainless)   (Replaces: W10424883)			Immediately	$ 527.64
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	W11230932		Brkt-mntg, Eoc   (Replaces: W10324410)			Immediately	$ 84.81
