01 - Cooktop Parts

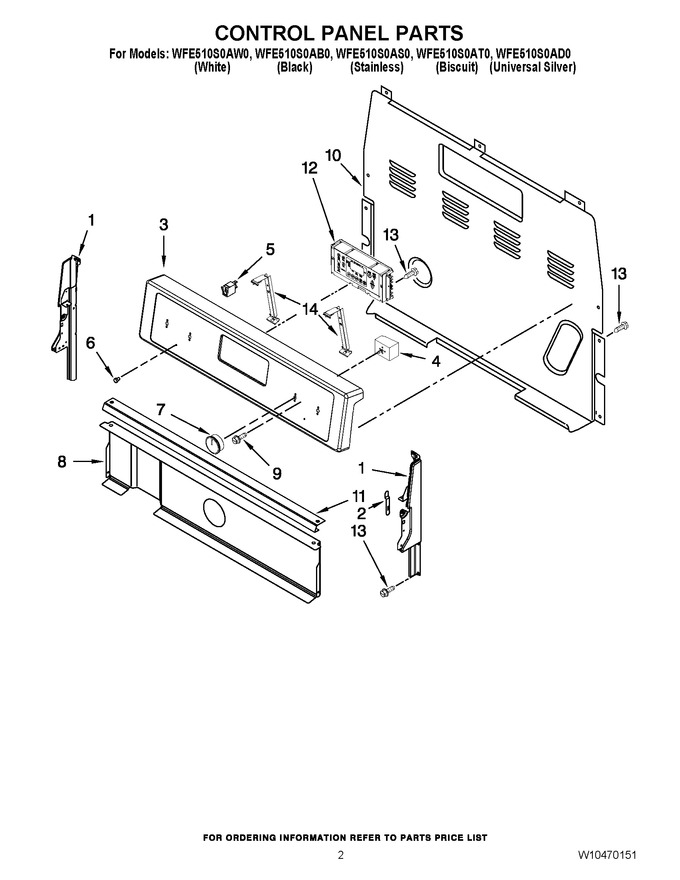

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11230612 | Endcap (biscuit, Rh) (Replaces: W10184436) |
|
- | |||||
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11230611 | Endcap (biscuit, Lh) (Replaces: W10184435) |
|
- | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 3 | W11251222 | Panel, Backguard (stainless) (Replaces: W10339376) |
|
$ 351.95 | |||||
| 3 | W10370182 | Panel, Backguard (biscuit) |
|
- | |||||
| 3 | W10370096 | Panel, Backguard (universal Silver) |
|
- | |||||
| 3 | W10370091 | Panel, Backguard (white) |
|
- | |||||
| 3 | W11231943 | Panel, Backguard (black) (Replaces: W10333940) |
|
$ 129.61 | |||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinite (left - Right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10490038 | Knob (black) (Replaces: W10339425) |
|
$ 21.54 | |||||
| 7 | WPW10490037 | Knob (white) (Replaces: W10339426) |
|
Immediately | $ 7.55 | ||||
| 7 | W10854421 | Knob (biscuit) (Replaces: W10339428) |
|
- | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Brkt-mntg Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 12 | WPW10734611 | Control, Range (lcc95) (white) (Replaces: W10348623) |
|
$ 570.75 | |||||
| 12 | WPW10734609 | Control, Range (lcc95) (stainless) (Replaces: W10424886) |
|
$ 561.30 | |||||
| 12 | WPW10734612 | Control, Range (lcc95) (black) (Replaces: W10348622) |
|
$ 585.63 | |||||
| 12 | W10413076 | Control, Range (lcc95) (biscuit) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W11230932 | Brkt-mntg, Eoc (Replaces: W10324410) |
|
Immediately | $ 84.81 |
