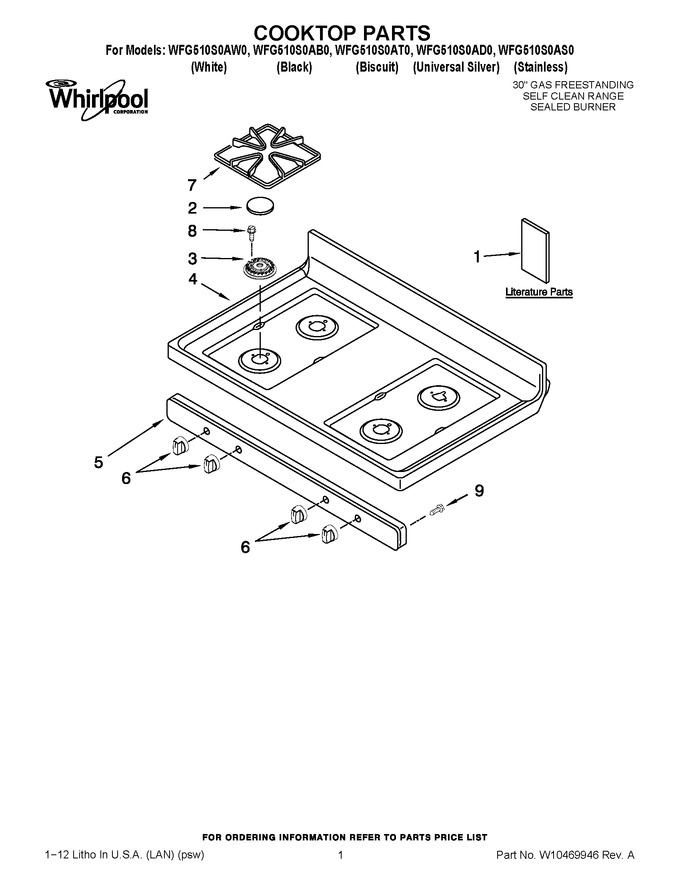

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403809 | Installation Instructions |
|
- | |||||
| 1 | W10394387 | Owners Manual |
|
- | |||||
| 1 | W10357517 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10225167 | Set, Burner Cap (black) (Replaces: W10225167) |
|
$ 80.03 | |||||
| 2 | WPW10225168 | Set, Burner Cap (wetstone) (Replaces: W10225168) |
|
$ 143.85 | |||||
| 3 | WPW10406797 | Burner (lf) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 3 | WPW10406283 | Burner (rf,lr) (Replaces: W10194076) |
|
$ 78.02 | |||||
| 3 | WPW10406243 | Burner (rr) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 4 | 8272251 | Cooktop (white) |
|
- | |||||
| 4 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 5 | W10444449 | Panel, Manifold (white) |
|
- | |||||
| 5 | W10444450 | Panel, Manifold (black) |
|
- | |||||
| 5 | W10444451 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | WPW10339443 | Knob, Control (white) (Replaces: W10339443) |
|
$ 21.54 | |||||
| 6 | WPW10339442 | Knob, Control (black) (Replaces: W10339442) |
|
Immediately | $ 18.09 | ||||
| 6 | WPW10339444 | Knob, Control (biscuit) (Replaces: W10339444) |
|
$ 21.03 | |||||
| 7 | WPW10447925 | Set, Grate Burner (black) (Replaces: W10447925) |
|
Immediately | $ 299.55 | ||||
| 7 | WPW10447925 | Set, Grate Burner (wetstone) (Replaces: W10457553) |
|
Immediately | $ 299.55 | ||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
