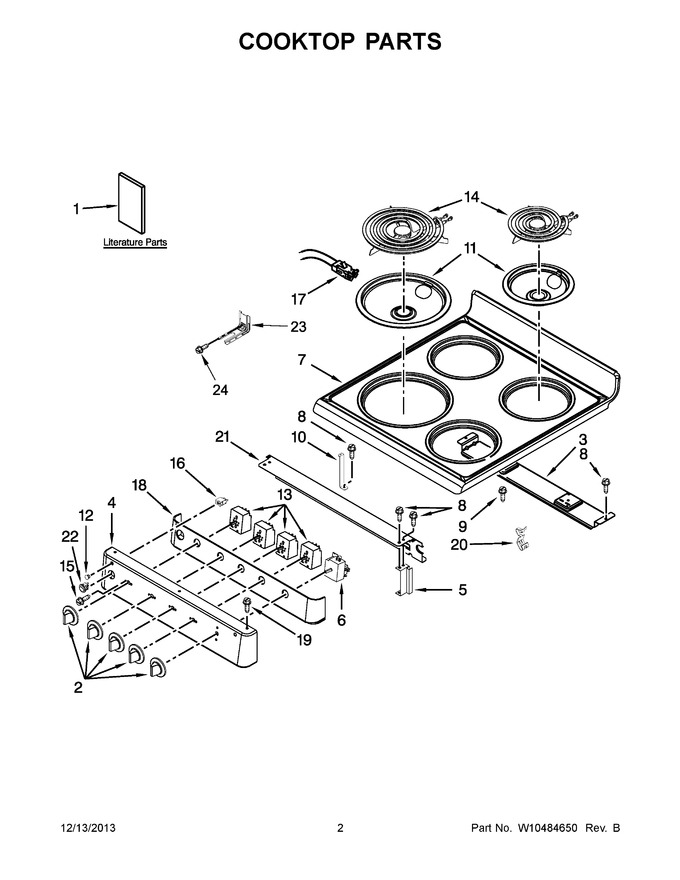

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10459122 | Insallation Instructions |
|
- | |||||
| 1 | W10181003 | Tech Sheet |
|
- | |||||
| 1 | 98007130 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10452008 | Use & Care Guide |
|
- | |||||
| 2 | WPW10183393 | Knob, Control (Replaces: W10183393) |
|
$ 21.74 | |||||
| 3 | W10168363 | Support, Burner |
|
- | |||||
| 4 | W10240782 | Panel, Control (white) |
|
- | |||||
| 5 | W10239597 | Bracket, Support (right) |
|
- | |||||
| 5 | W10239596 | Bracket, Support (left) |
|
- | |||||
| 6 | WP74009277 | Thermostat (Replaces: W10179656) |
|
$ 335.61 | |||||
| 7 | W10175582 | Cooktop (white) |
|
- | |||||
| 8 | W10837731 | Screw (Replaces: 98006633) |
|
$ 8.30 | |||||
| 9 | 98005578 | Screw |
|
- | |||||
| 10 | W10226319 | Bracket, Cooktop |
|
- | |||||
| 11 | WPW10196406 | Bowl, Chrome 6`` (left Rear, Right Rear, Right Front) (Replaces: W10179650) |
|
Immediately | $ 13.39 | ||||
| 11 | WPW10196405 | Bowl, Chrome 8`` (left Front) (Replaces: W10179653) |
|
Immediately | $ 17.29 | ||||
| 12 | W11690131 | Lens, Indicator (Replaces: W10179657) |
|
$ 7.85 | |||||
| 13 | WPW10179654 | Switch, Infinite (left Front) (Replaces: W10179654) |
|
$ 168.53 | |||||
| 13 | WP74002328 | Switch, Infinite (left Rear, Right Rear, Right Front) (Replaces: W10179655) |
|
$ 168.07 | |||||
| 14 | WPW10345407 | Element Coil 6`` (left Rear, Right Rear, Right Front) (Replaces: W10335285) |
|
Immediately | $ 165.42 | ||||
| 14 | WP9761346 | Element, Coil 8`` (left Front) (Replaces: W10335286) |
|
Immediately | $ 173.44 | ||||
| 15 | WP3400882 | Screw (Replaces: 98005663) |
|
Immediately | $ 7.55 | ||||
| 16 | W10852510 | Indicator, Light (Replaces: W10185551) |
|
$ 123.80 | |||||
| 17 | 814399 | Receptacle, Element |
|
Immediately | $ 43.19 | ||||
| 18 | W11688742 | Foil, Panel (Replaces: W10237433) |
|
- | |||||
| 19 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 14.72 | ||||
| 20 | 98005642 | Clip, Therm Bulb |
|
Immediately | $ 87.08 | ||||
| 21 | W10266787 | Shield, Control |
|
- | |||||
| 22 | 98011571 | Rocker Switch (white) |
|
- | |||||
| 23 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 24 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 30.72 |
