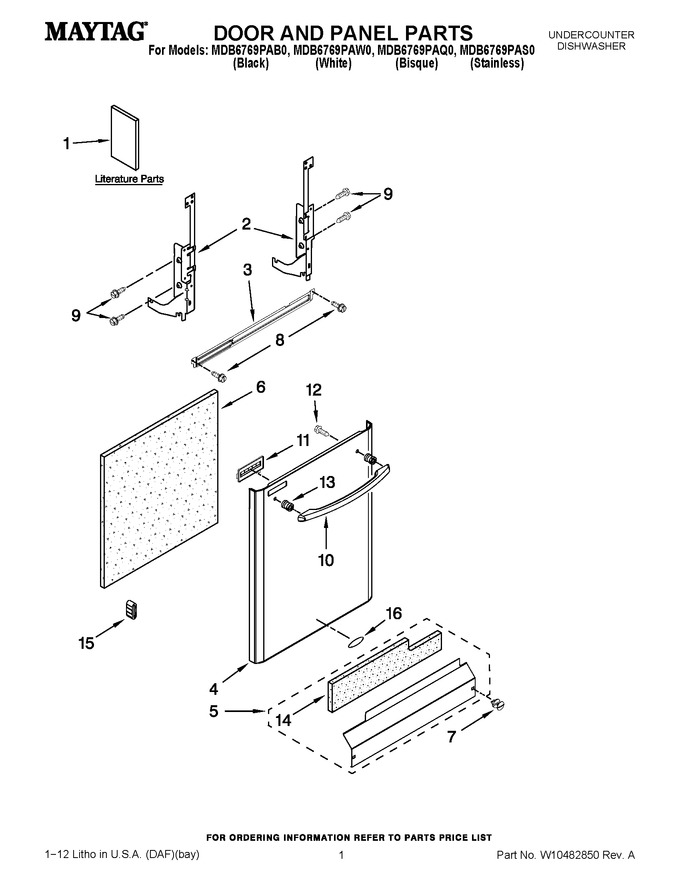

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10401489 | Use & Care Guide |
|
- | |||||
| 1 | W10321878 | Tech Sheet (english) |
|
- | |||||
| 1 | W10321879 | Tech Sheet (french) |
|
- | |||||
| 1 | W10435039 | Installation, Instructions |
|
- | |||||
| 1 | W10401493 | Energy Guide |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10274922) |
|
Immediately | $ 71.77 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10274921) |
|
Immediately | $ 83.93 | ||||
| 3 | W10850371 | Brace, Door (Replaces: W10195120) |
|
Immediately | $ 32.88 | ||||
| 4 | W10420036 | Panel Front (white) |
|
$ 141.14 | |||||
| 4 | WPW10420038 | Panel Front (stainless) (Replaces: W10420038) |
|
$ 372.90 | |||||
| 4 | W10420034 | Panel Front (black) |
|
$ 304.41 | |||||
| 4 | W10420037 | Panel Front (bisque) |
|
- | |||||
| 5 | W10827632 | Access Panel (white) (Replaces: W10369026) |
|
Immediately | $ 163.70 | ||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369024) |
|
Immediately | $ 195.64 | ||||
| 5 | W10369028 | Access Panel (bisque) |
|
$ 170.73 | |||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | WPW10503548 | Fastener (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 10 | W10461637 | Handle (stainless) |
|
- | |||||
| 10 | W10324627 | Handle (white) (Replaces: W10461635) |
|
$ 182.84 | |||||
| 10 | WPW10324630 | Handle (black) (Replaces: W10461636) |
|
$ 196.53 | |||||
| 10 | W10461638 | Handle (bisque) |
|
- | |||||
| 11 | W10329549 | Vent Grille, Assembly (white) |
|
- | |||||
| 11 | W10329550 | Vent Grille, Assembly (bisque) |
|
- | |||||
| 11 | W10398679 | Vent Grille, Assembly (stainless) |
|
- | |||||
| 11 | W10329548 | Vent Grille, Assembly (black) |
|
- | |||||
| 12 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 13 | W11157086 | Stud (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 14 | W10831329 | Insulation (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 15 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 6.68 | ||||
| 16 | W10288004 | Nameplate |
|
$ 52.11 |
