SELECT A DIAGRAM

01 - Cover Sheet

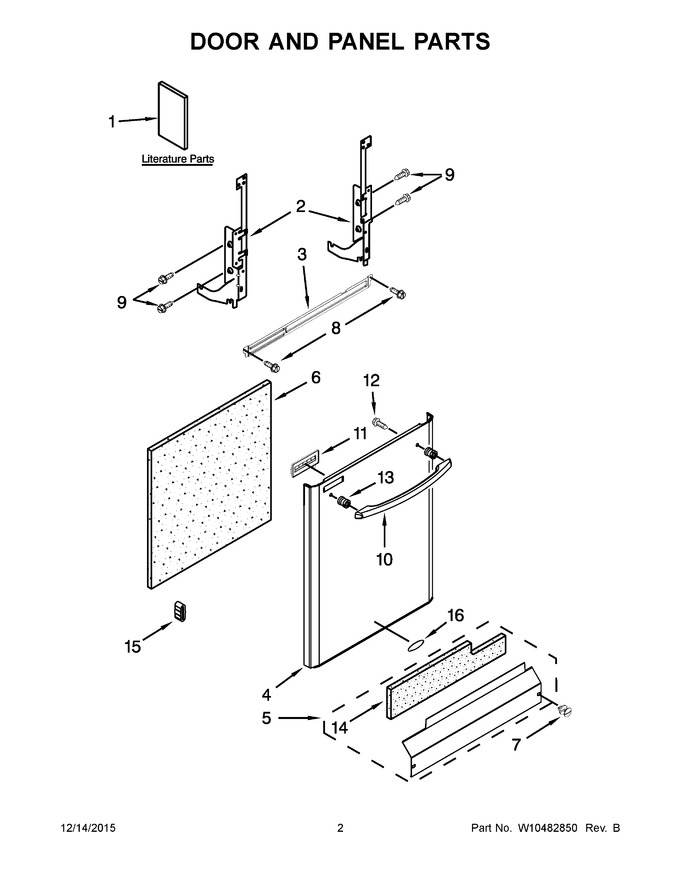

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Lower Washarm Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10435039		Instructions, Installation		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10195120)			Immediately	$ 32.88
4	W10420034		Panel Front (black)				$ 304.41
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
7	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
8	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
9	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
10	WPW10324630		Handle (black)   (Replaces: W10461636)				$ 196.53
11	W10329548		Vent Grille, Assembly (black)		Appelez-nous	-
12	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
13	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
14	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
15	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.68
16	W10288004		Nameplate				$ 52.11
10A	W10324627		Handle (white)   (Replaces: W10461635)				$ 182.84
10B	W10461637		Handle (stainless)		Appelez-nous	-
11A	W10329549		Vent Grille, Assembly (white)		Appelez-nous	-
11B	W10398679		Vent Grille, Assembly (grey)		Appelez-nous	-
1A	W10401493		Energy Guide		Appelez-nous	-
1B	W10401489		Use & Care Guide		Appelez-nous	-
1C	W10321878		Tech Sheet, English		Appelez-nous	-
1D	W10321879		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93
4A	W10420036		Panel Front (white)				$ 141.14
4B	WPW10420038		Panel Front (stainless)   (Replaces: W10420038)				$ 372.90
5A	W10827632		Access Panel (white)   (Replaces: W10369026)			Immediately	$ 163.70

    View Diagram in Separate Window       Print Part List
