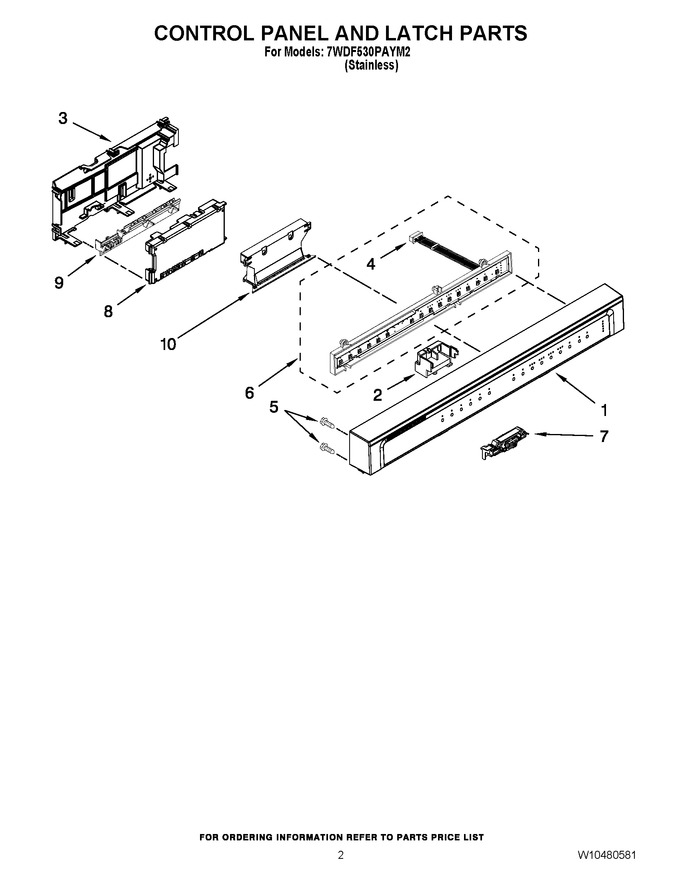

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10350328 | Console Asm. (Replaces: W10350285) |
|
$ 139.26 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 31.41 | |||||
| 3 | W10356310 | Cover Control Shield Assembly |
|
- | |||||
| 4 | W10327239 | Wire, Jumper |
|
- | |||||
| 5 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 6 | WPW10629167 | Housing, User Interface (Replaces: W10440699) |
|
$ 337.76 | |||||
| 7 | W10619006 | Latch, Assy (Replaces: W10380262) |
|
Immediately | $ 39.09 | ||||
| 8 | W10473200 | Control, Electronic (Replaces: W10461370) |
|
$ 283.77 | |||||
| 9 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 10 | WPW10321839 | Handle, Pocket (Replaces: W10321839) |
|
Immediately | $ 149.02 |
