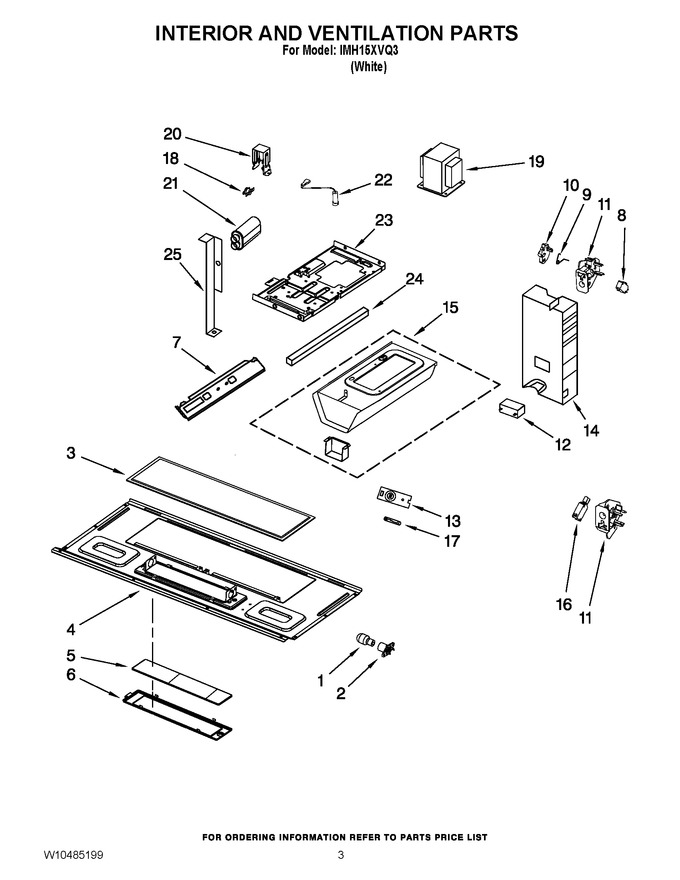

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206232A		Lamp   (Replaces: 8206232)			Immediately	$ 7.34
2	W10210871		Holder, Lamp			Immediately	$ 6.39
3	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
4	W10245196		Plate, Bottom				$ 244.83
5	WPW10210875		Glass, Lamp   (Replaces: W10210875)				$ 334.23
6	W10210873		Holder, Glass				$ 5.75
7	W10315759		Support, Ntc				$ 100.07
8	W10269458		Switch, Micro Szm-v16-fc-62			Immediately	$ 40.11
9	W10156812		Spring, Interlock			Immediately	$ 12.14
10	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 17.83
11	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	W11405832		Capacitor, 125 V   (Replaces: 8206357)				$ 27.24
13	W10163422		Thermistor (pcba)				$ 171.14
14	W10364230		Plate, Side		Appelez-nous	-
15	W10313269		Chassis Assembly		Appelez-nous	-
16	W10269460		Switch, Micro Szm-v16-fc-63			Immediately	$ 45.95
17	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
18	W10269232		Thermostat				$ 70.74
19	W10269455		Transformer, H.v.		Appelez-nous	-
20	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 28.28
21	8206562		Capacitor, H.v.			Immediately	$ 120.92
22	W11256462		Diode, H.v.   (Replaces: W10163432)			Immediately	$ 33.20
23	W10269456		Chassis				$ 78.11
24	W11523261		Cushion, Ntc   (Replaces: W10313276)		Appelez-nous	-
25	W10313275		Bracket, Top				$ 33.92
