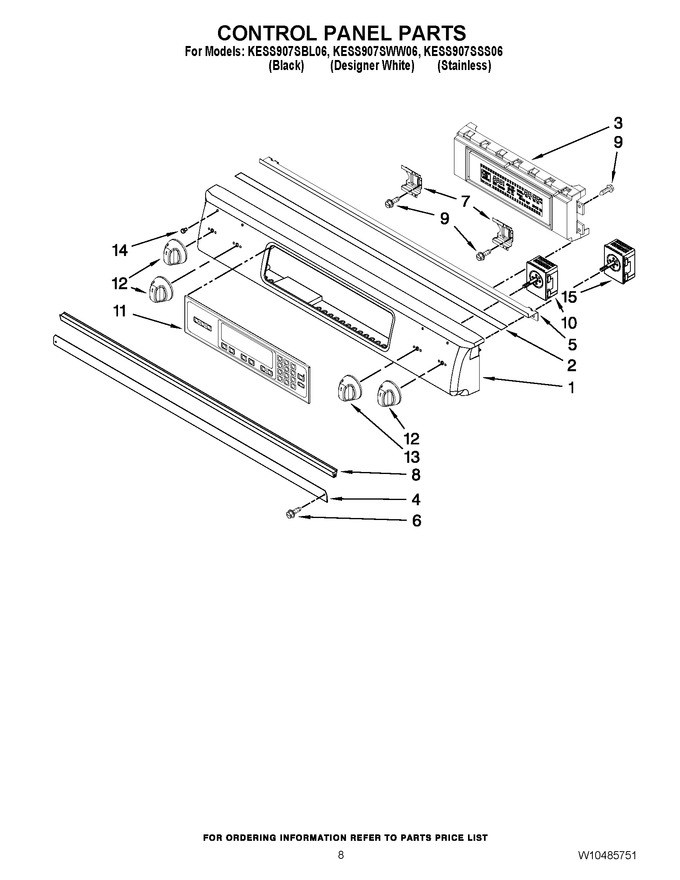

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10190661 | Control Panel (white) |
|
$ 218.87 | |||||
| 1 | W10190662 | Control Panel (stainless) |
|
$ 232.34 | |||||
| 1 | W10190660 | Control Panel (black) |
|
$ 166.32 | |||||
| 2 | W10110246 | Gasket, Console |
|
$ 123.31 | |||||
| 3 | W10181439 | Control, Electric |
|
$ 483.37 | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | W10117524 | Bracket, Console |
|
$ 36.94 | |||||
| 6 | W10061760 | Screw |
|
$ 7.62 | |||||
| 7 | 9761745 | Bracket, Thermostat |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 10 | WP9763761 | Single Switch Rf (Replaces: 9763761) |
|
Immediately | $ 218.61 | ||||
| 11 | WP9761566 | Membrane, Switch (Replaces: 9761566) |
|
Immediately | $ 450.25 | ||||
| 12 | WPW10156260 | Knob, Smart Dual Lf,lr,rr (stainless) (Replaces: W10156260) |
|
Immediately | $ 66.63 | ||||
| 12 | WPW10193253 | Knob, Smart Dual Lf,lr,rr (white) (Replaces: W10193253) |
|
Immediately | $ 22.04 | ||||
| 12 | WPW10193255 | Knob, Smart Dual Lf,lr,rr (black) (Replaces: W10193255) |
|
$ 30.17 | |||||
| 13 | W10156261 | Knob, Smart Single Rf (stainless) |
|
$ 16.61 | |||||
| 13 | W10193259 | Knob, Smart Single Rf (black) |
|
$ 16.52 | |||||
| 13 | WPW10193257 | Knob, Smart Single Rf (white) (Replaces: W10193257) |
|
Immediately | $ 21.78 | ||||
| 14 | WP3196068 | Lens, Indicator Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 15 | WP9763762 | Dual Switch Lf,lr,rr (Replaces: 9763762) |
|
Immediately | $ 226.29 |
