SELECT A DIAGRAM

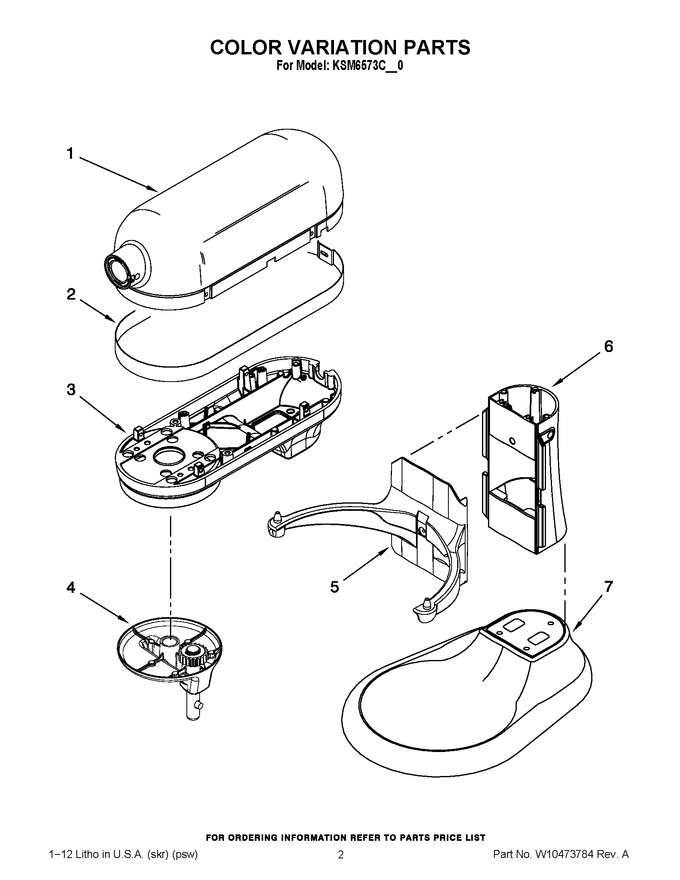

01 - Color Variation Parts


02 - Case, Gearing And Planetary Unit


03 - Base And Pedestal Unit


04 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9703311		Motor Housing (white)				$ 88.20
1	9705296		Motor Housing (onyx Black)				$ 88.20
1	9705300		Motor Housing (empire Red)				$ 88.20
1	W10327951		Motor Housing (contour Silver)				$ 71.00
2	W10410026		Trim Band (dark Platinum)		Appelez-nous	-
3	W10234489		Lower Gearcase (white)   (Replaces: W10234488)		Appelez-nous	-
3	W10410015		Lower Gearcase (onyx Black)   (Replaces: W10410012)				$ 63.99
3	W10410014		Lower Gearcase (empire Red)   (Replaces: W10410011)				$ 66.24
3	W10410010		Lower Gearcase (contour Silver)		Appelez-nous	-
4	WPW10420628		Planetary (white)   (Replaces: W10420628)				$ 64.21
4	WPW10410018		Planetary (onyx Black)   (Replaces: W10410018)				$ 65.60
4	WPW10419426		Planetary (empire Red)   (Replaces: W10419426)				$ 66.18
4	WPW10410016		Planetary (contour Silver)   (Replaces: W10410016)				$ 66.76
5	9707633		Bowl Support And Pins (white)		Appelez-nous	-
5	9707876		Bowl Support And Pins (onyx Black)		Appelez-nous	-
5	9707883		Bowl Support And Pins (empire Red)		Appelez-nous	-
5	W10410004		Bowl Support And Pins (contour Silver)		Appelez-nous	-
6	9703673		Column And Pins (white)				$ 81.26
6	9705320		Column And Pins (onyx Black)		Appelez-nous	-
6	9705324		Column And Pins (empire Red)		Appelez-nous	-
6	W10328003		Column And Pins (contour Silver)		Appelez-nous	-
7	9703690		Base & Foot Assembly (white)		Appelez-nous	-
7	9705344		Base & Foot Assembly (onyx Black)		Appelez-nous	-
7	9705348		Base & Foot Assembly (empire Red)		Appelez-nous	-
7	W10328017		Base & Foot Assembly (contour Silver)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
