01 - Cover Sheet
02 - Color Parts
03 - Base And Pedestal Unit Parts

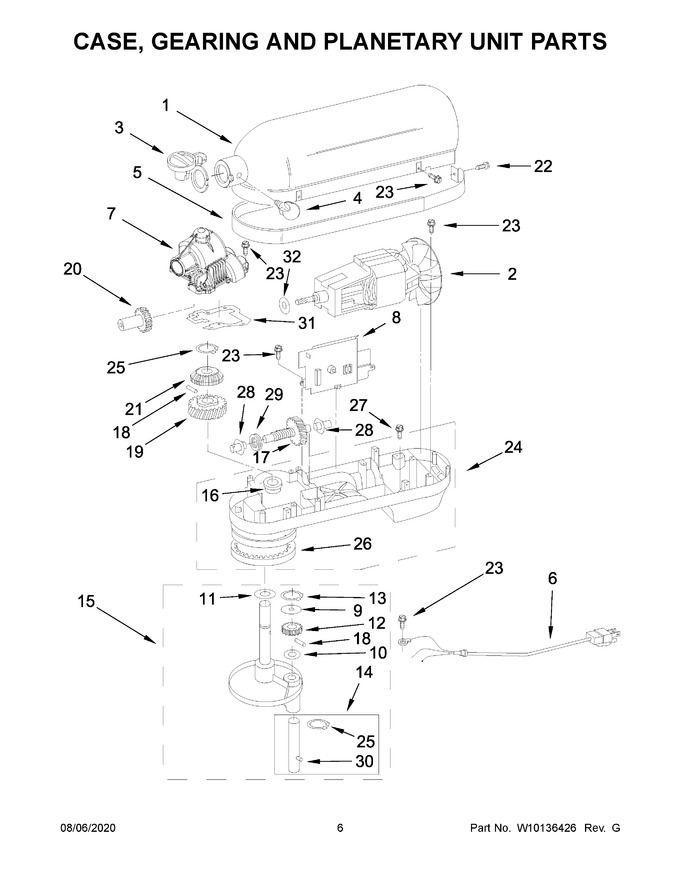

04 - Case, Gearing And Planetary Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | WPW10247536 | Motor, 120 Volt (Replaces: W10247536) |
|
Immediately | $ 125.65 | ||||
| 3 | W11123129 | Cap, Attachment Hub (chrome) (Replaces: 9703315) |
|
$ 19.69 | |||||
| 4 | WP9709196 | Thumb Screw (grey) (Replaces: 9709196) |
|
$ 9.41 | |||||
| 5 | N/P | Band, Trim (refer To Color Variation Parts Page) |
|
- | |||||
| 6 | W11359748 | Power Cord (white) (Replaces: W10325654) |
|
$ 39.83 | |||||
| 7 | 8212396 | Transmission Housing (Replaces: 9709125) |
|
Immediately | $ 62.13 | ||||
| 8 | WP9706648 | Control With Black Knob (Replaces: 9706648) |
|
Immediately | $ 109.97 | ||||
| 9 | W10854966 | Washer (Replaces: 8533910) |
|
$ 4.94 | |||||
| 10 | WP9706090 | Washer (Replaces: 9706090) |
|
$ 5.04 | |||||
| 11 | W11084660 | Washer, Fiber (Replaces: W10323379) |
|
Immediately | $ 4.94 | ||||
| 12 | W11133646 | Gear, Pinion (Replaces: W10903507) |
|
Immediately | $ 8.47 | ||||
| 13 | WP9703438 | Ring, Retaining (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 14 | WP9708191 | Shaft, Agitator (Replaces: 9708191) |
|
Immediately | $ 17.84 | ||||
| 15 | N/P | Planetary Assembly (refer To Color Variation Parts Page) |
|
- | |||||
| 16 | WP16897 | Bearing, Lower Center (Replaces: 16897) |
|
Immediately | $ 5.10 | ||||
| 17 | WP9709231 | Gear, Worm (Replaces: 9709231) |
|
Immediately | $ 55.55 | ||||
| 18 | WP9707223 | Pin, Retaining (Replaces: 9707223) |
|
Immediately | $ 5.08 | ||||
| 19 | W11086780 | Gear, Worm Follower (Replaces: W10916068) |
|
Immediately | $ 19.02 | ||||
| 20 | W11192795 | Gear, Attachment Hub Level (Replaces: W11175144) |
|
Immediately | $ 23.38 | ||||
| 21 | W11192795 | Gear, Bevel (Replaces: W11044501) |
|
Immediately | $ 23.38 | ||||
| 22 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 23 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 24 | N/P | Lower Gear Case (refer To Color Variation Parts Page) |
|
- | |||||
| 25 | WP9703680 | Clip, Retaining (Replaces: 9703680) |
|
Immediately | $ 4.99 | ||||
| 26 | W11181966 | Gear, Internal (Replaces: W11044502) |
|
$ 14.82 | |||||
| 27 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 28 | WPW10170080 | Bearing (front) (Replaces: W10170080) |
|
Immediately | $ 5.14 | ||||
| 29 | WP9703445 | Bearing, Thrust (Replaces: 9703445) |
|
Immediately | $ 9.26 | ||||
| 30 | W11664709 | Pin, Groove (Replaces: 9704677) |
|
Immediately | $ 6.75 | ||||
| 31 | WP9709511 | Gasket, Transmission (Replaces: 9709511) |
|
Immediately | $ 8.04 | ||||
| 32 | WP9706247 | Seal, Motor Shaft (Replaces: 9706247) |
|
Immediately | $ 4.84 | ||||
| 28A | WPW10170081 | Bearing (rear) (Replaces: W10170081) |
|
Immediately | $ 5.14 | ||||
| 4A | WP9709194 | Thumb Screw (black) (Replaces: 9709194) |
|
Immediately | $ 20.14 | ||||
| 6A | W11728151 | Power Cord (black) (Replaces: W11359747) |
|
$ 19.61 | |||||
| 8A | WP9706648 | Control With Grey Knob (Replaces: 9706649) |
|
Immediately | $ 109.97 |
