SELECT A DIAGRAM

01 - Top And Console Parts

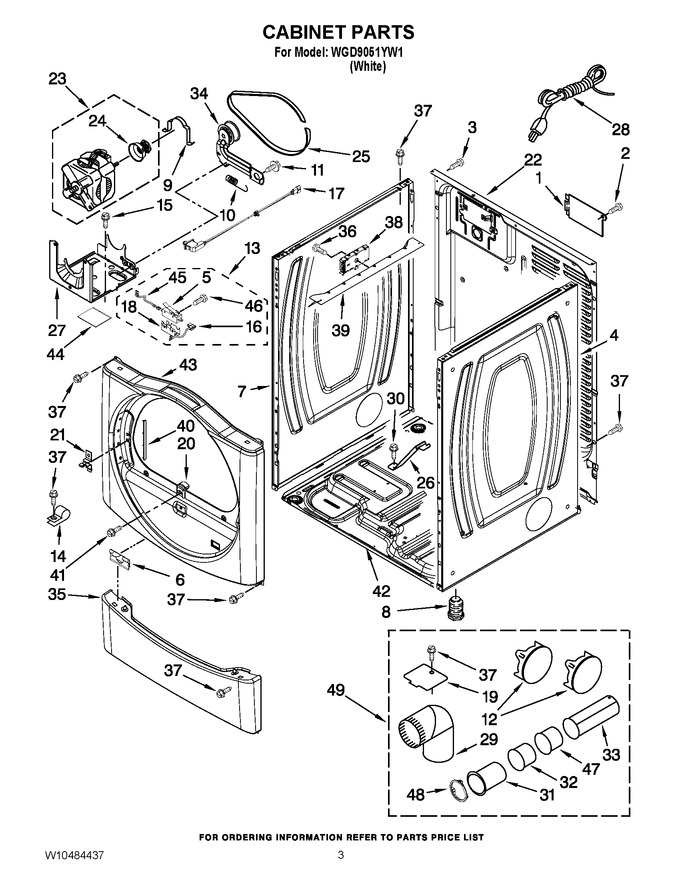

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 350.58
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 104.11
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 22.17
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 350.58
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: W10404617)				$ 75.58
13	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 27.72
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
16	8539892		Wire-motor To Belt Switch		Appelez-nous	-
17	W10318609		Assembly, Door Switch				$ 75.64
18	8564011		Bracket-switch				$ 19.08
19	WPW10354249		Cover-plate   (Replaces: W10354249)				$ 9.41
20	8565083		Ramp, Door		Appelez-nous	-
21	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
22	8565059		Panel, Rear				$ 244.90
23	W11234001		Motor Assembly 60 Hz.   (Replaces: W10139766)			Immediately	$ 433.87
24	WP8066184		Pulley 60 Hz   (Replaces: 3394341)			Immediately	$ 51.02
25	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
26	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
27	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 134.62
28	W11222083		Cord, Power   (Replaces: W10440461)				$ 126.62
29	WPW10416072		4`` - 90° Elbow   (Replaces: W10416072)				$ 28.16
30	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
31	WP8563747		Exhaust Pipe   (Replaces: 8563747)				$ 95.95
32	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 82.90
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
34	WPW10344192		Idler Bracket   (Replaces: W10344192)			Immediately	$ 94.57
35	WP8540621		Toe Panel   (Replaces: 8540621)				$ 189.38
36	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
37	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
38	WPW10450081		Control Board   (Replaces: W10450081)			Immediately	$ 347.72
39	WP8563727		Control Bracket   (Replaces: 8563727)				$ 179.69
40	W10085210		Plug, Strip Front Panel				$ 85.03
41	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
42	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
43	W10251264		Front Panel				$ 344.07
44	W11113654		Dampening Panel   (Replaces: W10212660)				$ 23.29
45	W10167613		Wire Belt Swtich		Appelez-nous	-
46	777849		Screw 6-20 X1.000   (Replaces: W10002600)				$ 7.36
47	WP8563748		Exhaust Pipe (short)   (Replaces: W10331277)				$ 13.55
48	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 85.70
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)			Immediately	$ 76.65
