SELECT A DIAGRAM

01 - Top Burner


02 - Main Top


03 - Power Lock


04 - Broiler And Oven Burner


05 - Oven Body


06 - Oven Door


07 - Wire Harness , Backsplash , Grid

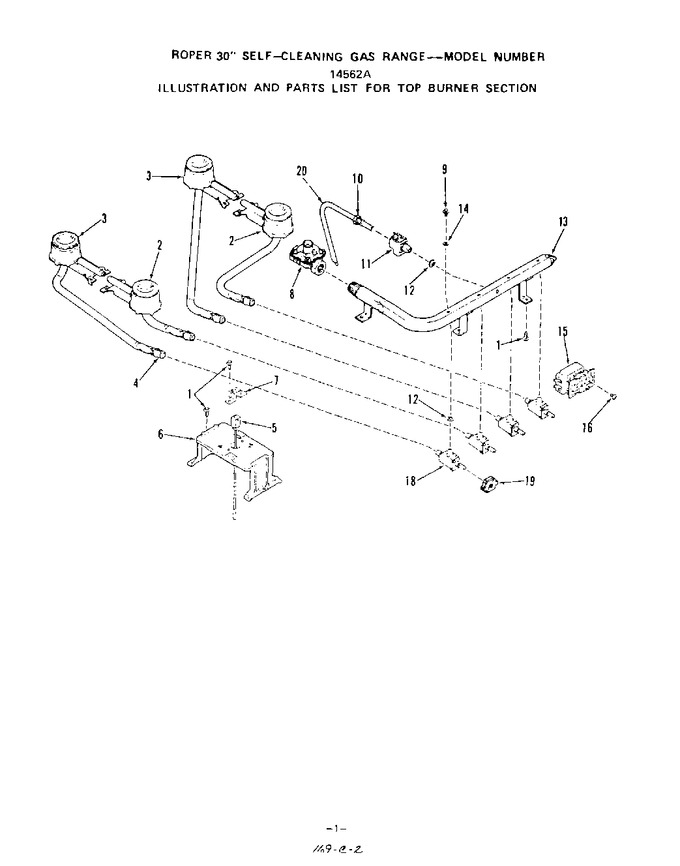

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	330350		Burner-top Front (inc.`sa) (left)		Appelez-nous	-
2	330351		Burner-top Front (inc.`sa) (right)		Appelez-nous	-
3	330488		Burner-top Rear (inc`s. 4) (left)		Appelez-nous	-
3	330489		Burner-top Rear (inc`s. 4) (right)		Appelez-nous	-
4	327198		Air Shutter (4 Req)		Appelez-nous	-
5	329464		Electrode-spark Igniter (left)		Appelez-nous	-
5	329462		Electrode-spark Igniter (right)		Appelez-nous	-
6	330358		Support-top Burner (rt. Or Lt.)		Appelez-nous	-
7	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
8	324528		Pressure Regulator		Appelez-nous	-
9	311455		Mounting Screw 1/4-20		Appelez-nous	-
10	113384		Inverted Nut 3/8``		Appelez-nous	-
11	326830		Shut Off Valve		Appelez-nous	-
12	313563		Rubber Gasket		Appelez-nous	-
13	330348		Manifold Pipe		Appelez-nous	-
14	311692		Rubber Gasket		Appelez-nous	-
15	328279		Thermostat-oven		Appelez-nous	-
16	78565		Screw 8-32x3/16``		Appelez-nous	-
18	333508		Gas Valve (4 Req)		Appelez-nous	-
19	310253		Switch-gas Valve (4 Req)		Appelez-nous	-
20	331107		Tubing 3/8`` (shut-off Valve To Control Valve)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
