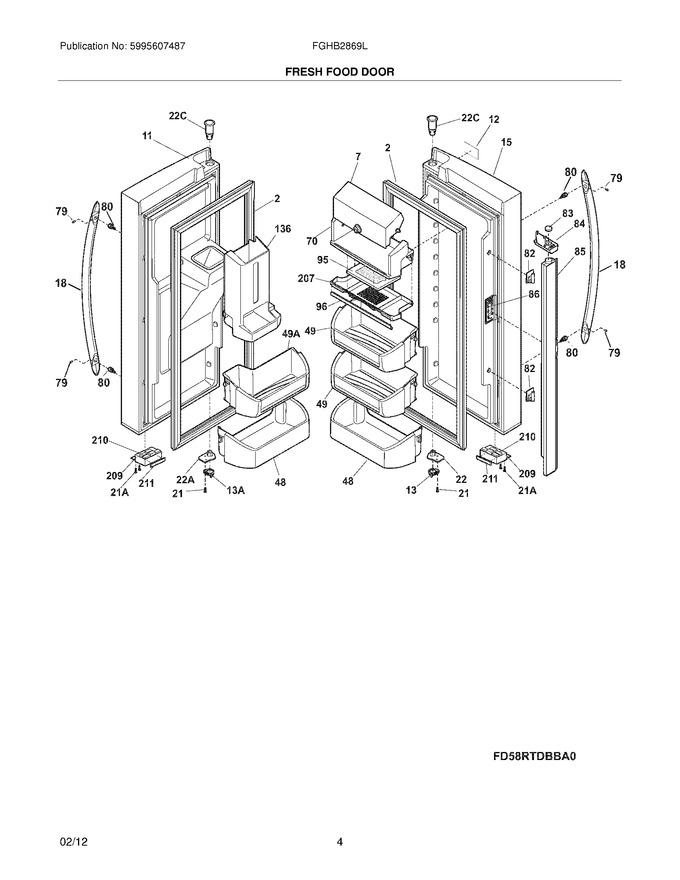

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 242011401 | Door-dairy,removable |
|
- | |||||
| 11 | 241988037 | Door-refr,white ,lh |
|
- | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 7.67 | ||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 20.48 | |||||
| 15 | 241988040 | Door-refr,white ,rh |
|
$ 343.93 | |||||
| 18 | 297437820 | Handle-door,white ,(2) (Replaces: 241930102) |
|
$ 124.43 | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 17.33 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 48 | 242071401 | Bin-door,pseudo ,white |
|
Immediately | $ 102.21 | ||||
| 49 | 242037201 | Bin-door,gallon |
|
Immediately | $ 124.22 | ||||
| 70 | 241804604 | Compartment-dairy,removable |
|
- | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 24.43 | ||||
| 83 | 241812201 | Magnet,door |
|
$ 73.24 | |||||
| 84 | 5303918644 | Guide-mullion,magnet Cover ,flipper (Replaces: 241779702) |
|
$ 46.04 | |||||
| 85 | 241778808 | Flipper Mullion Assembly,w/heater |
|
Immediately | $ 350.44 | ||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 45.83 | ||||
| 95 | EAFCBF | Filter-air (Replaces: 242047801) |
|
Immediately | $ 30.71 | ||||
| 96 | 242048006 | Door-air Filter (Replaces: 242048002) |
|
$ 18.54 | |||||
| 136 | 242071501 | Dispenser-can,white |
|
$ 197.18 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 89.32 | |||||
| 209 | 242291001 | Housing-magnet,white (Replaces: 242021001) |
|
$ 22.75 | |||||
| 210 | 241779101 | Magnet,door (Replaces: 241779103) |
|
Immediately | $ 34.65 | ||||
| 211 | 241979601 | Bumper,rubber |
|
$ 25.20 | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 20.48 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 27.80 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 21.26 | ||||
| 49A | 242037202 | Bin-door,2-liter |
|
Immediately | $ 117.16 | ||||
| F2 | 241778315 | Gasket-door,white (Replaces: 241778301) |
|
Immediately | $ 99.87 | ||||
| FNI | 242040802 | Harness-wiring,door |
|
$ 103.74 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 22.05 | |||||
| NI | 241601001 | Wrench,allen |
|
- | |||||
| NI | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 19.01 | ||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 242068601 | Bumper,rh Door |
|
$ 16.01 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| NI | 242015001 | Screw,no.10 8-19 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NI | 5304520993 | Harness-wiring,flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 46.63 | ||||
| NI | 240451503 | Screw (Replaces: 242064001) |
|
$ 4.21 |
