SELECT A DIAGRAM

01 - Door And Panel Parts

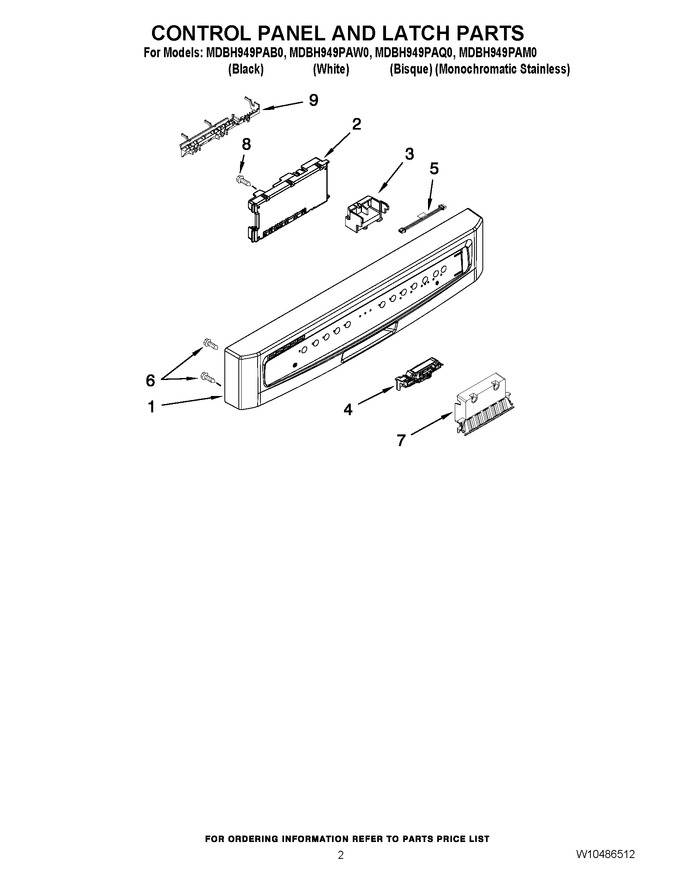

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10811161		Console Assembly (includes Active Overlay & Insert) (black)   (Replaces: W10329480)				$ 389.34
1	W10329479		Console Assembly (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10811162		Console Assembly (includes Active Overlay & Insert) (bisque)   (Replaces: W10329481)				$ 399.53
1	W10811163		Console Assembly (includes Active Overlay & Insert) (stainless)   (Replaces: W10471282)				$ 371.88
2	W10486463		Control, Electronic   (Replaces: W10352589)				$ 283.77
3	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
4	W10619006		Latch Assembly   (Replaces: W10380262)			Immediately	$ 39.09
5	WPW10401502		Jumper   (Replaces: W10401502)				$ 22.26
6	WP304231		Screw   (Replaces: 304231)			Immediately	$ 8.14
7	WPW10329510		Handle Pocket (black)   (Replaces: W10329510)				$ 149.88
7	WPW10401479		Handle Pocket (white)   (Replaces: W10401479)				$ 150.50
7	W10401480		Handle Pocket (bisque)				$ 101.27
8	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
9	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56

    View Diagram in Separate Window       Print Part List
