01 - Cooktop Parts

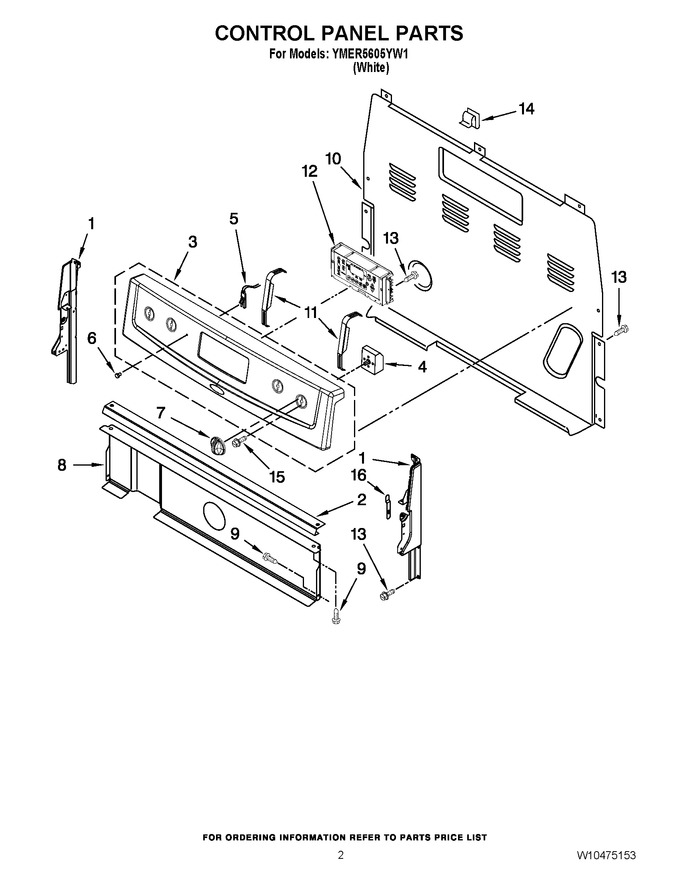

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10276853 | Panel, Console (white) |
|
$ 114.31 | |||||
| 4 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | 5500-287 | Switch, Infinite ((lr)(rf)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite ((lf)(rr)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | 3196166 | Screw |
|
$ 7.36 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 12 | W10310972 | Control, Range Lcc90 (white) |
|
$ 433.43 | |||||
| 13 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 14 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 15 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 16 | 3196200 | Clip, Spring |
|
$ 10.45 |
