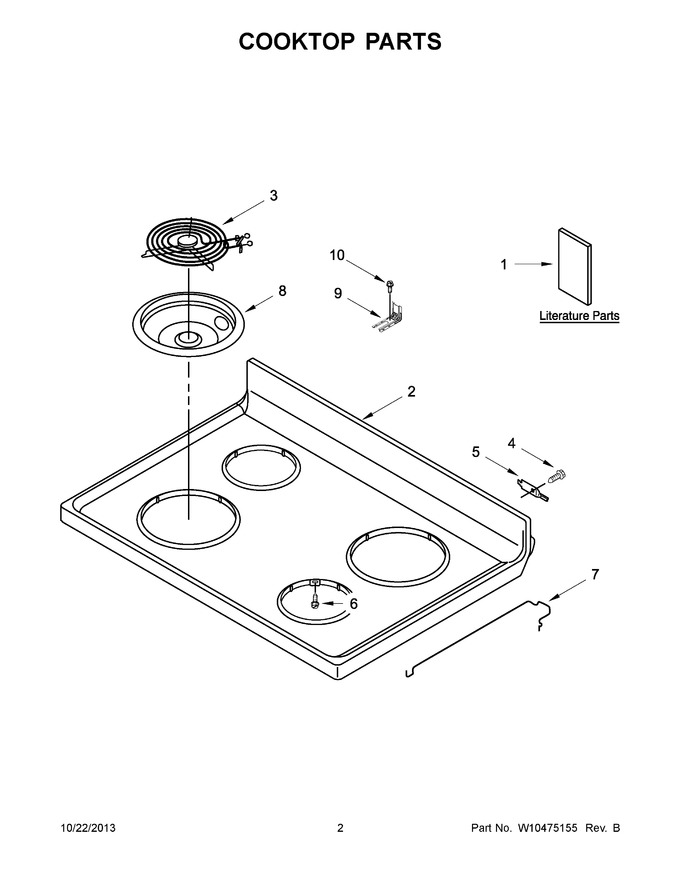

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419390 | User Instructions |
|
- | |||||
| 1 | W10361708 | Sheet, Tech (english) |
|
- | |||||
| 1 | W10361709 | Sheet, Tech (french) |
|
- | |||||
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 509.93 | |||||
| 2 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 3 | WPW10259868 | Element (6``) (right Front & Left Rear) (Replaces: W10259868) |
|
Immediately | $ 173.17 | ||||
| 3 | WPW10259865 | Element (8``) (left Front & Right Rear) (Replaces: W10259865) |
|
Immediately | $ 144.20 | ||||
| 4 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 5 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 6 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 7 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 8 | WPW10196405 | Pan, Bowl, Drip (8``) (left Front & Right Rear) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 8 | WPW10196406 | Pan, Bowl, Drip (6``) (right Front & Left Rear) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 |
